100KW 215KWH Battery Storage Cabinet
100KW 215KWH Battery Energy Storage Cabinet
100KW 215KWH Battery Storage Cabinet

100KW 215KWH Lithium Battery Storage Cabinets

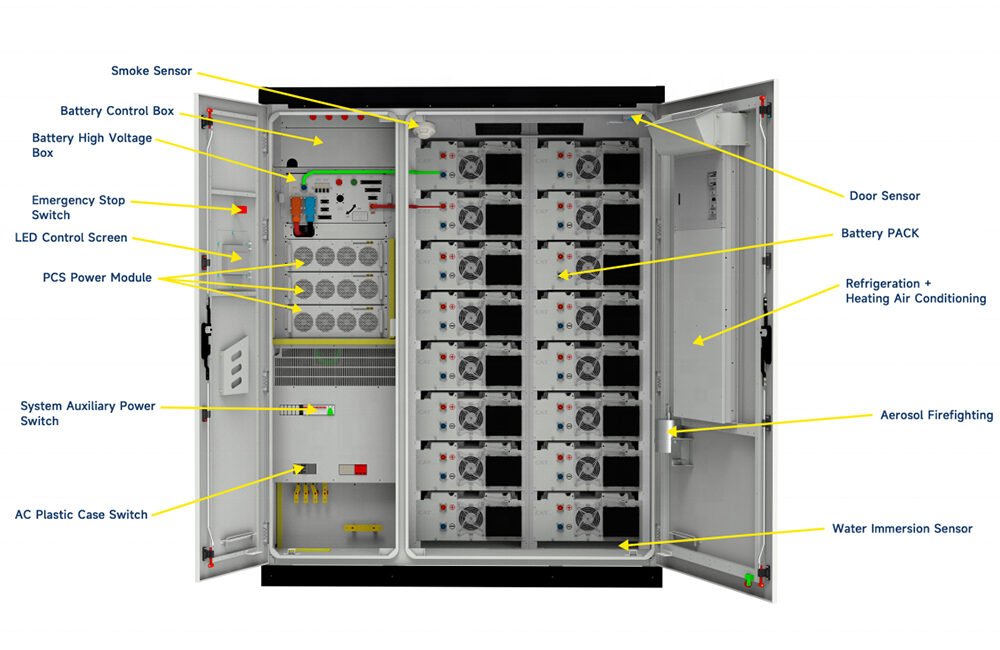

  • This 100kw/215kwh solar battery storage system is loaded withenergy storage batteries, PCS, photovoltaic controller (MPPT) (optional), BMS management system, EMS management system, power distribution system, environmental control system and fire control system to fully control the system operating status and risks.
  • Configured with a rack-mounted modular PCS, it supports parallel connection of multiple machines and has good scalability; the number of PCS modules and the total battery power can be selected according to the solar energy thermal storage system capacity requirements of microgrid and other scenarios.
  • The protection level is IP54, which can perfectly cope with various types of outdoor weather.
  • The door-mounted embedded integrated air conditioner does not occupy cabinet space, increases the available space of outdoor cabinets, has better top structural integrity and good waterproofing effect.
  • The local control panel can realize various functions such as system operation monitoring, energy management strategy formulation, and remote equipment upgrade.
Get A Quote

Description

Lifepo4 Lithium Ion Battery Storage Cabinets

100KW 215KWH Battery Storage Cabinet

Lithium Battery Storage Cabinets Datasheet

Model HMX-BESS-100200
SYSTEM  NOMINAL
Rated power105KW
Rated capacity215KWh
AC INPUT/ OUTPUT
Rated voltage400V
Voltage range340～440V
Rated current151A
Rated frequency50/60Hz
Power factor> 0.99
DC INPUT/ OUTPUT
Rated voltage768V
Min. voltage650V
Max. voltage876V
Rated current140A
Cell capacity280Ah
Cell numbers240pcs
Total capacity215KWh
BATTERY  MANAGEMENT
Battery cluster 1pcs
Battery module15pcs
Voltage accuracy0.20%
Temperature accuracy1%
SOC accuracy5%
Capacity accuracy1%
AIR  CONDITIONER
Installation methodInstalled inside
Air cooling power3kW
FIRE  PROTECTION  SYSTEM
 Fire extinguishing mediaHeptafluoropropane
Spraying method Direct stray
CYCLE  LIFE
>6000 cycles(25℃,0.5C)
AVAILABILITY  RATE
 >90%
PHYSICAL
Weight<3.5t

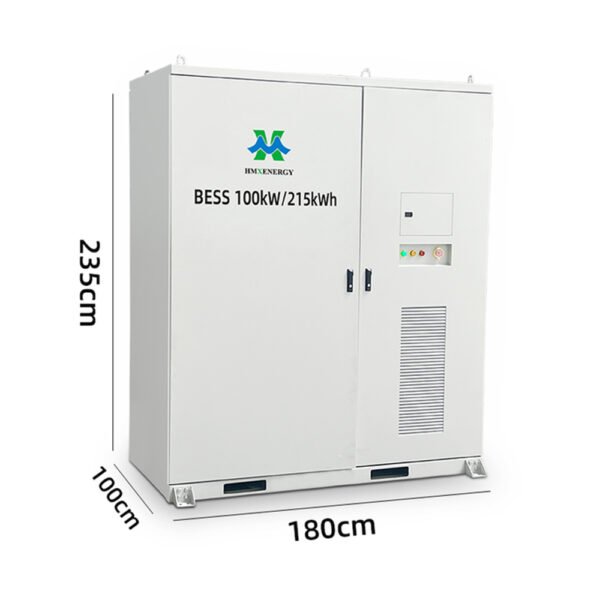

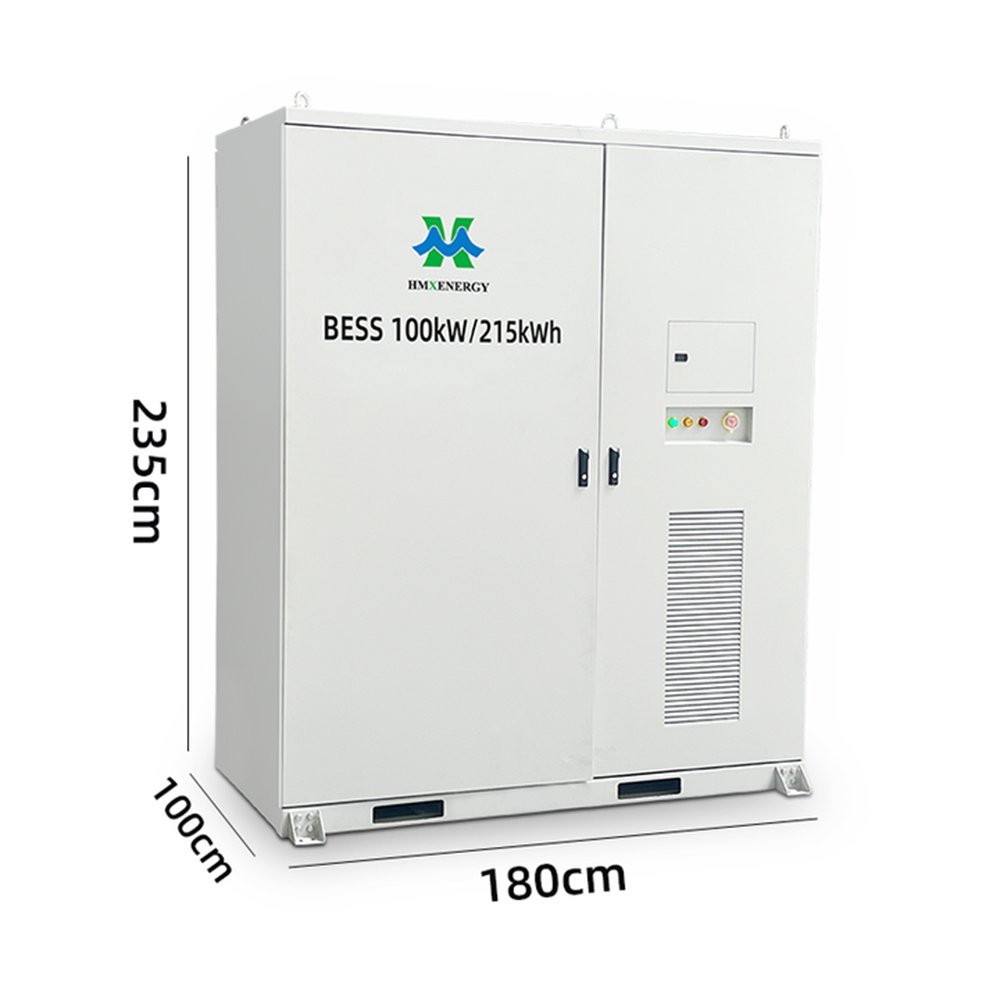

L*W*H1800*1000*2350(mm)

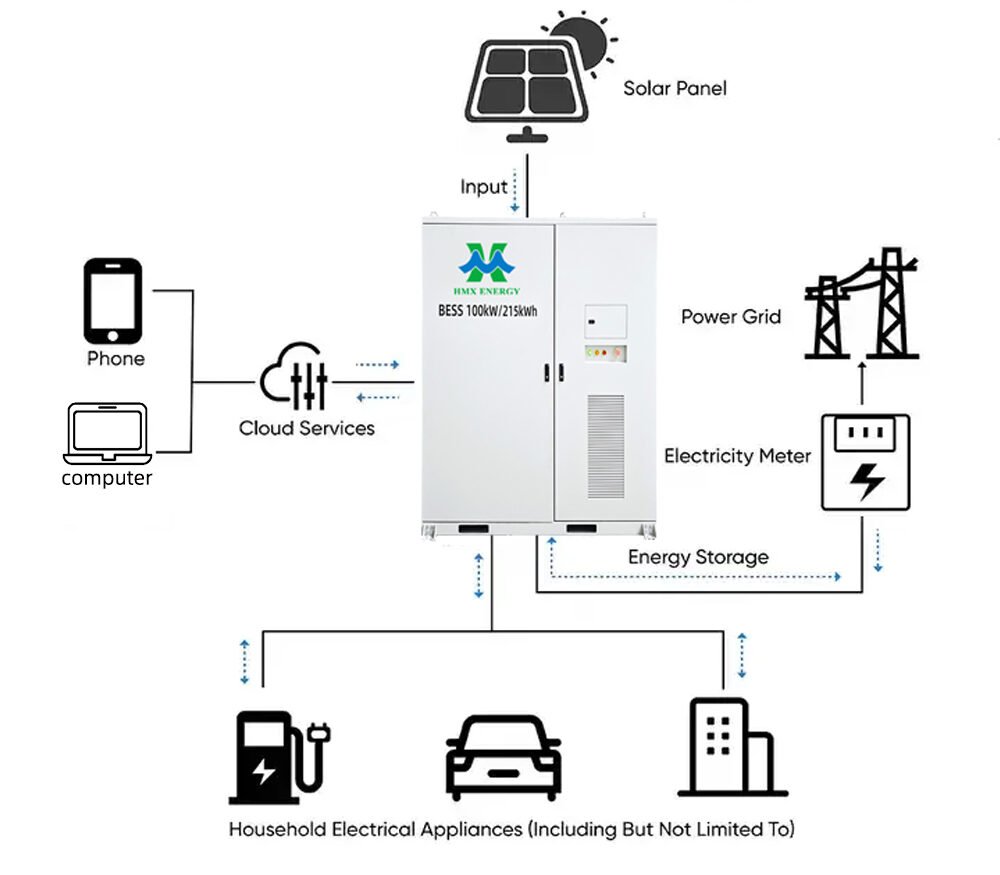

Lithium Battery Storage Cabinets System Topology

100KW 215KWH BESS System Topology lithium battery storage cabinets

If this cabinet didn’t suit your requirement, mahybe you can see our energy storage container.

HMX ENERGY is a reliable and profesional company in Solar Energy System.
