HMX 125kW/261kWh Energy Storage System is an integrated solution designed for commercial and industrial energy management. Featuring 261.04kWh capacity, LFP battery technology, and intelligent liquid cooling, it delivers safe, stable, and efficient energy storage.
The system integrates BMS, bidirectional PCS, EMS, fire suppression, and thermal management for simplified installation and reliable operation. It supports peak shaving and valley filling, PV energy storage, demand control, and microgrid applications, helping reduce electricity costs and optimize energy utilization.
Key Features:
125kW Rated Power / 261.04kWh Capacity
LFP Battery Technology
Intelligent Liquid Cooling
Integrated BMS & EMS
Bidirectional PCS with Grid/Off-Grid Operation
Aerosol Fire Suppression
Remote Monitoring & Intelligent Energy Management
HMX Energy C&I energy storage system integrates LiFePO4 battery modules and high-performance bidirectional PCS. We deliver reliable energy storage solutions for manufacturing plants, industrial parks, commercial complexes and data centres. Available in indoor cabinet and outdoor container formats with flexible capacity scaling. Full-project delivery and localised technical support are available for overseas projects.

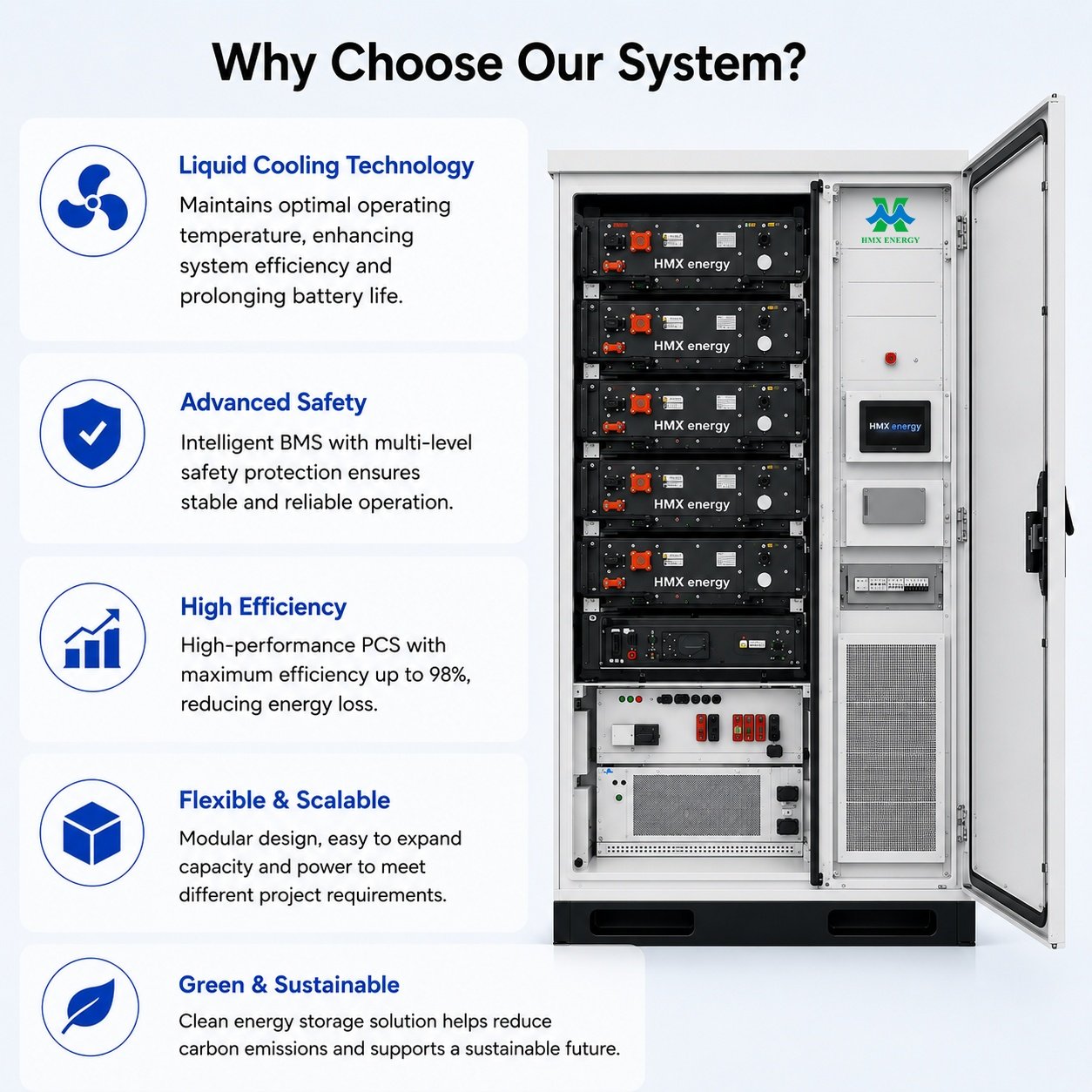

From cell selection and liquid-cooling thermal management to grid-side control, every layer of the system is engineered for continuous commercial and industrial duty.
Store cheap off-peak grid power, discharge during high-price peak hours to cut overall electricity expenditure.
Smooth power spikes, effectively reduce maximum demand charges for factories and industrial facilities.
Adopt lithium iron phosphate battery chemistry with multi-layer protection for long-cycle stable operation.
Real-time system status, remote data check, alarm notification and performance statistics via cloud platform.
Pre-integrated cabinet & container units, shorten site construction and commissioning cycle.
Cover solution design, product supply, technical guidance, commissioning and after-sales support.

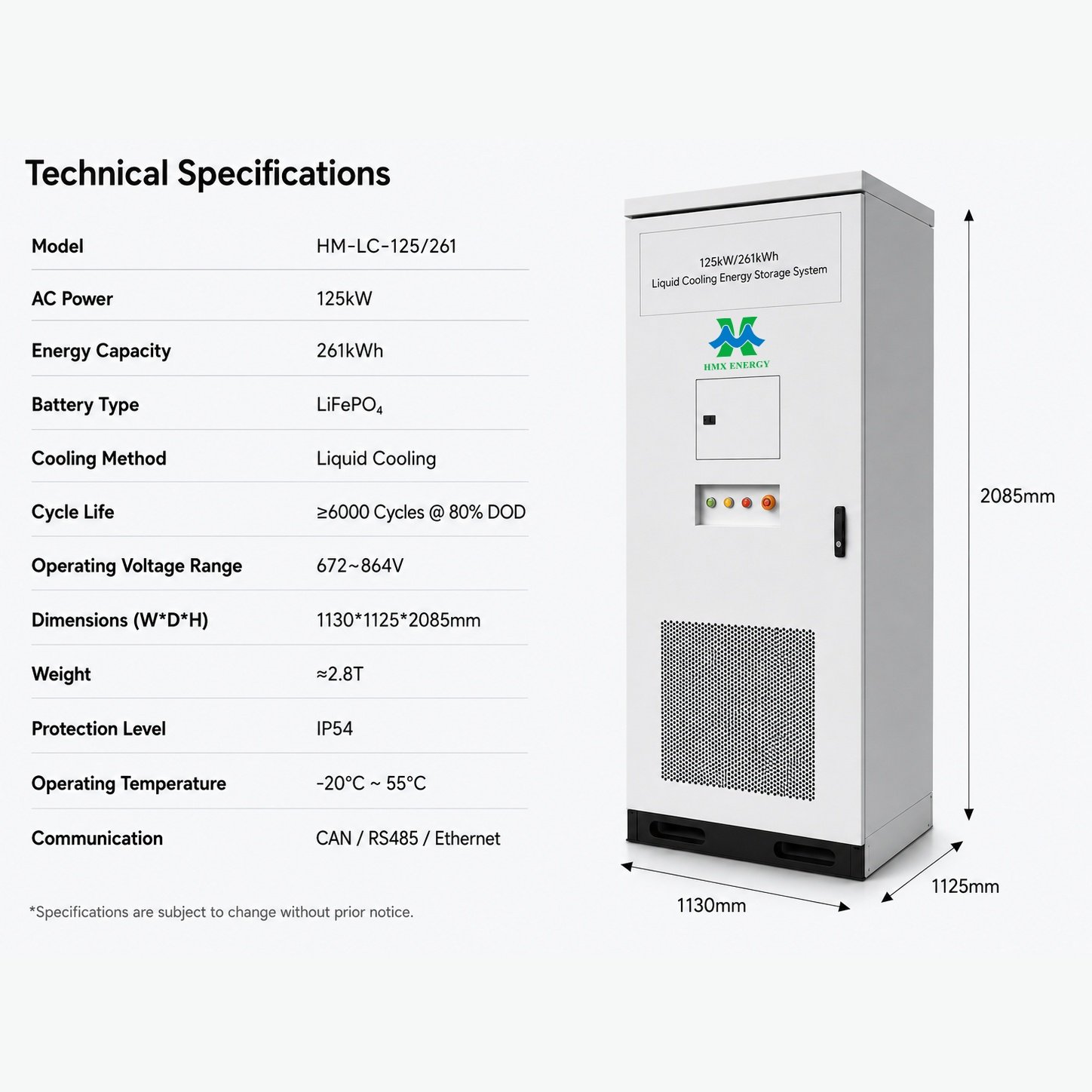

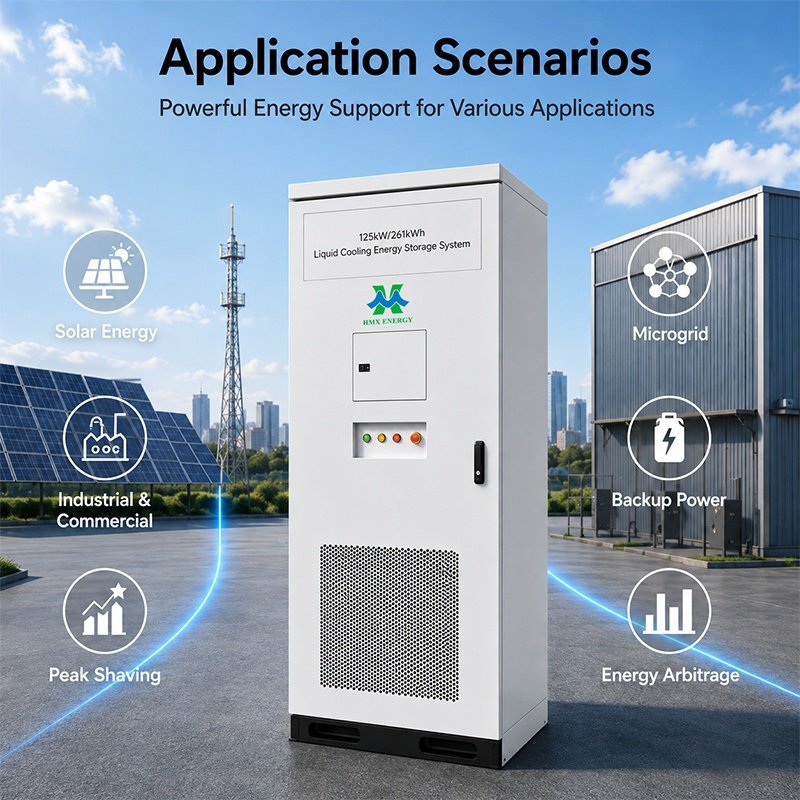

The 125kW / 261.04kWh liquid-cooled cabinet is built around 314Ah LFP cells with an 832V battery cluster, intelligent liquid cooling and IP54 protection for demanding industrial sites.
| Item | Specification |
|---|---|
| Product Type | Commercial & Industrial Energy Storage System |
| Rated Power | 125 kW |
| Rated Energy | 261.04 kWh |
| Battery Chemistry | LFP (Lithium Iron Phosphate) |
| Cell Capacity | 314 Ah |
| Battery Cluster Voltage | 832 V |
| Battery Operating Voltage | 728–936 V |
| Charge/Discharge Rate | ≤0.5P |
| AC Rated Voltage | 400 V |
| Grid Frequency | 50/60 Hz |
| Maximum Output Current | 160 A |
| Cooling Method | Liquid Cooling |
| Operating Temperature – Charging | 0–55°C |
| Protection Rating | IP54 |
| Communication | RS485 / 4G / Wi-Fi / RJ45 |
| PCS Rated Power | 125 kW |
| PCS DC Voltage Range | 680–950 V |
| PCS Maximum DC Current | 200 A |
| PCS AC Connection | Three-phase, four-wire |
| PCS Grid Frequency | 50/60 Hz |
| PCS Cooling | Intelligent Air Cooling |
| PCS Communication | RS485 / CAN |

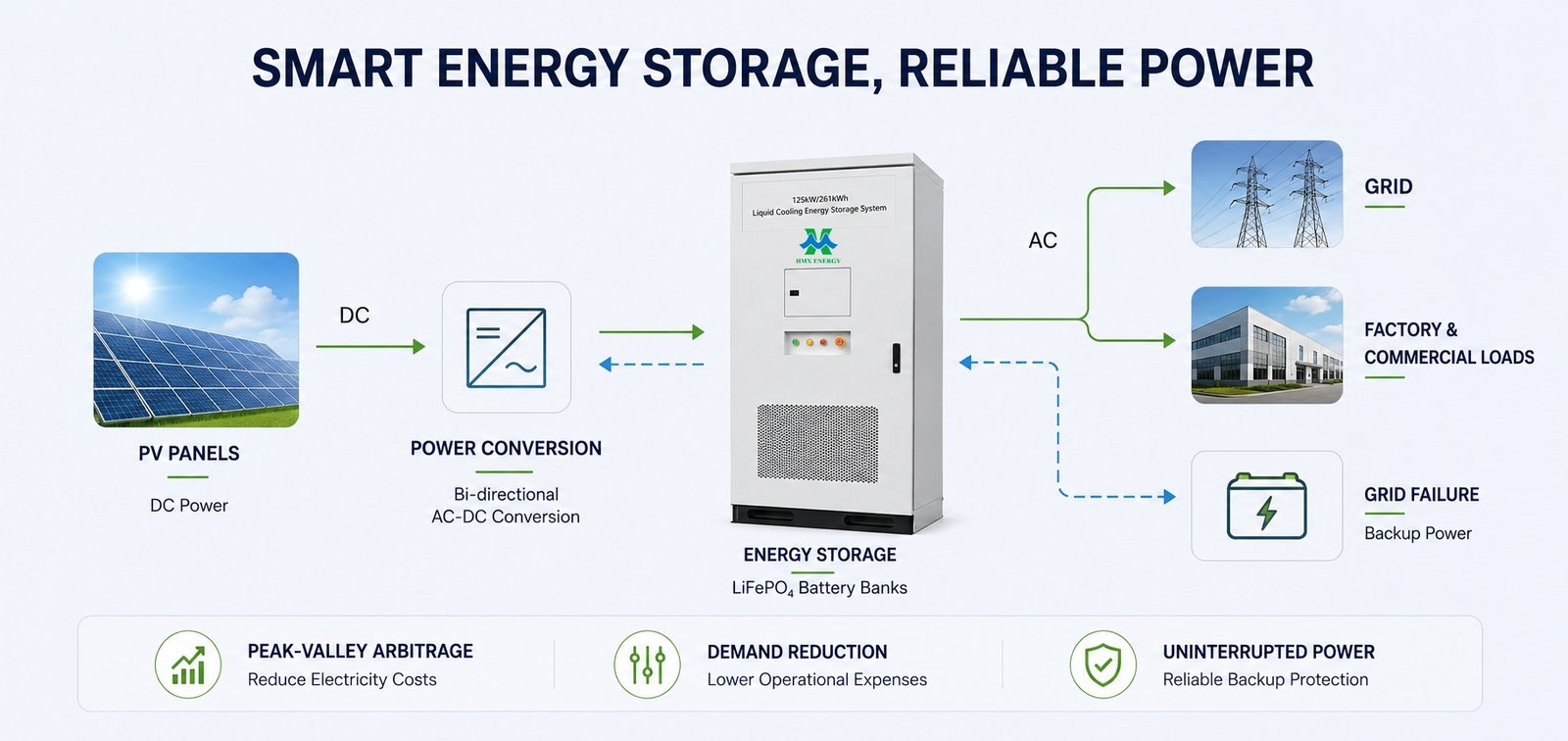

Photovoltaic panels generate DC solar power. The bidirectional PCS completes AC-DC power conversion, and energy is stored in LiFePO4 battery banks.
During high-tariff peak periods or grid failure, the stored energy discharges to supply factory and commercial loads. This delivers peak-valley arbitrage, demand-charge reduction and uninterrupted backup power for your facility.
Peak-valley arbitrage plus demand-charge control for production lines. The system shaves peak load, cuts maximum demand charges and keeps critical equipment running through grid disturbances.
Reliable UPS-grade backup power for critical IT infrastructure. Instant switchover protects servers and network equipment from outage-related downtime and data loss.

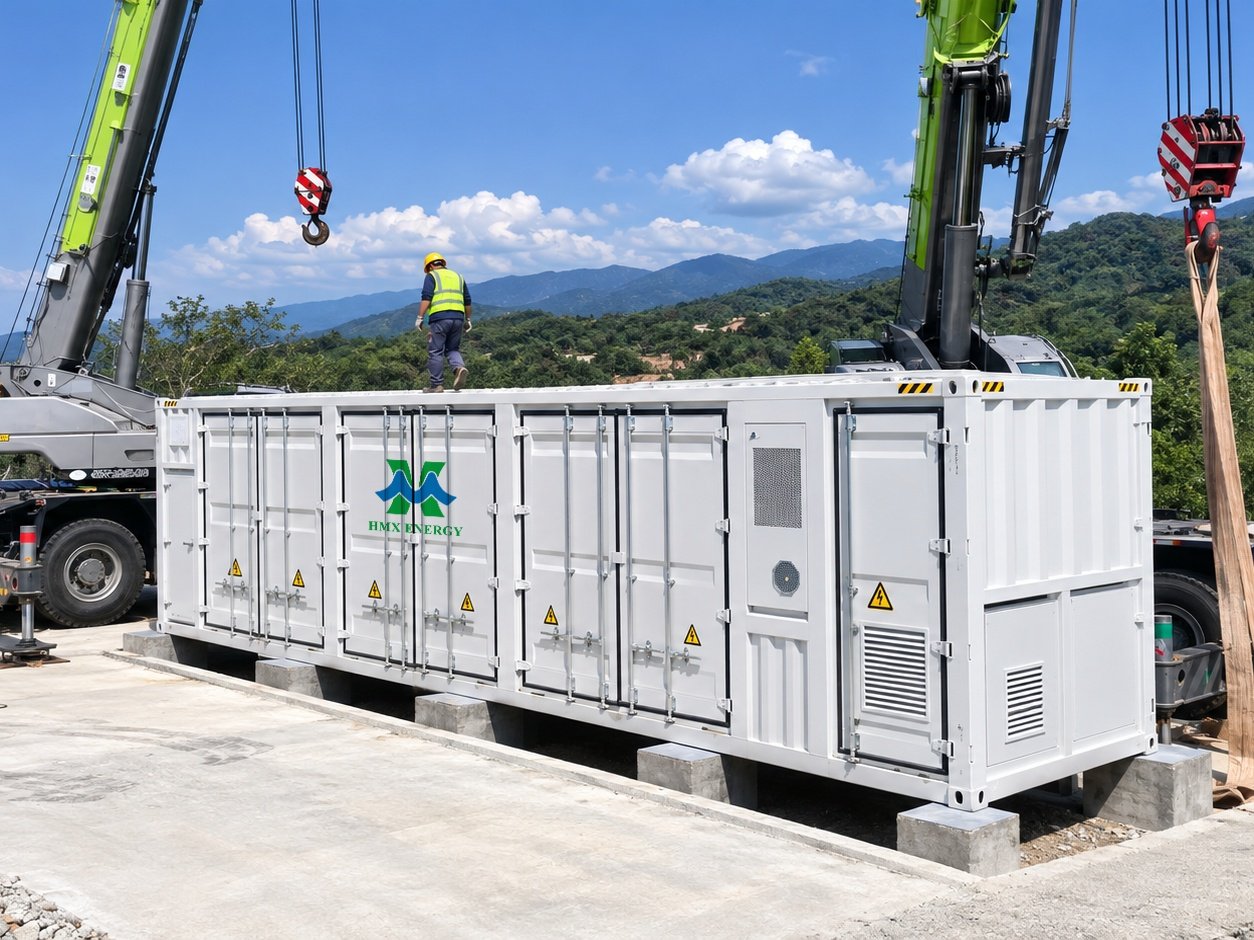

Location: Philippines
System Scale: 4MWh Container C&I Energy Storage
Main Function: Peak-valley arbitrage & backup power
The manufacturing factory adopted our outdoor container ESS to cut demand charges and guarantee power supply during grid blackouts.

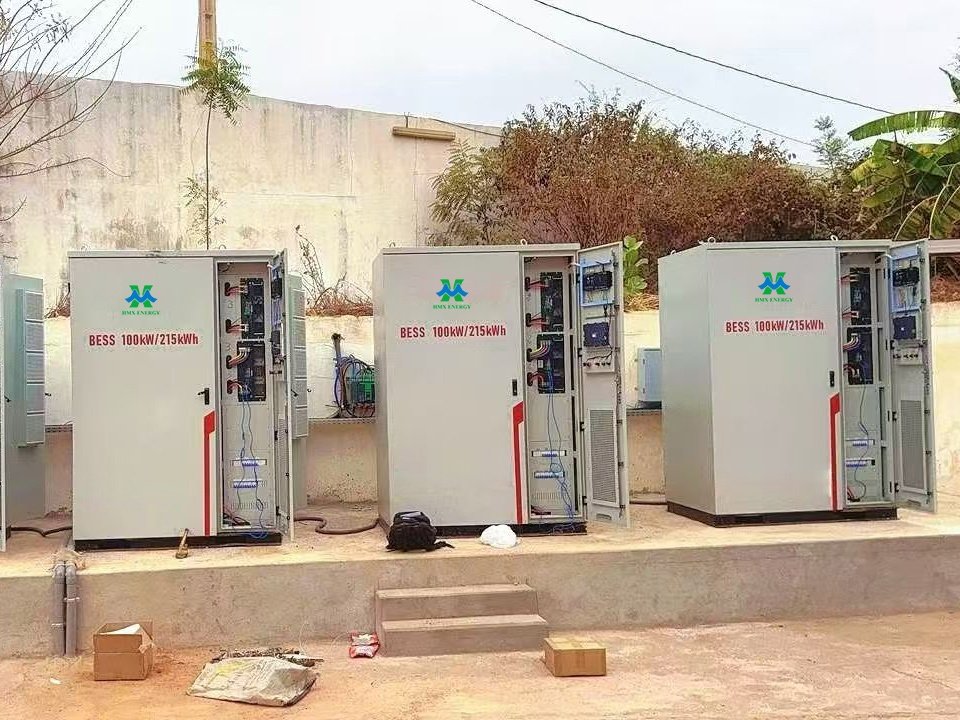

Mali · 215kWh cabinet-type energy storage · 24/7 off-grid power.
Location: Mali
System Scale: 215kWh cabinet-type energy storage
Main Function: 24/7 off-grid power
Built for limited grid coverage and frequent outages — food spoilage in malls, disrupted daily life in villas and safety risks at gas stations — this 100kW/215kWh pure off-grid system realizes self-generation for self-use with parallelizable expansion.

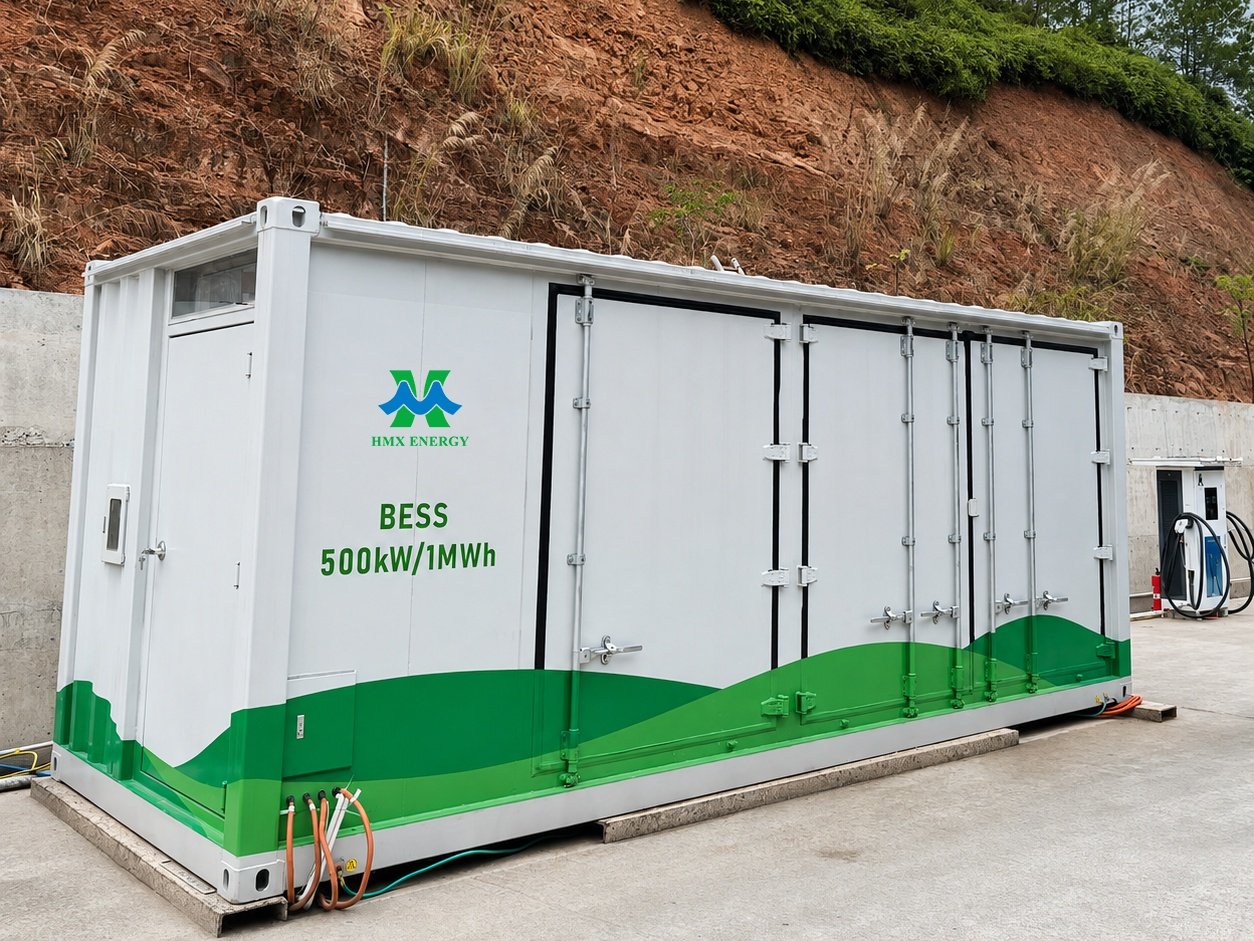

"PV generation → energy storage → nighttime bus charging" closed loop, 100% off-grid
Location: China
System Scale: 625kW PV array + 1MWh energy storage system
Main Function: Responds to "Dual Carbon" strategy & urban green transportation. Energy Attribute: From "grid-dependent power sales" to "100% self-consumption" (solves peak-valley price/grid load issues)
Scenario Adaptation: Matches buses’ "day operation, night charging" via time-shifted energy supply (no municipal power needed)
Benefits: From single economic benefit to "ecology + economy + operation" triple value.
Select the proper energy storage capacity according to your site’s actual load condition:
100–300 kWh cabinet-type energy storage
500–1000 kWh container-type energy storage
Above 1 MWh, customised container ESS solution
Contact our engineering team for free site evaluation and a custom-tailored solution.
C&I energy storage helps business users realise peak-valley arbitrage, reduce demand charges, provide emergency backup power and improve the self-consumption rate of on-site solar PV systems. It is widely used for factories, warehouses, commercial buildings and industrial parks.
Required capacity depends on your maximum load, local electricity tariff rules and target functions. Our engineers can offer a capacity suggestion after you provide your site load data.
Payback is mainly affected by the local electricity price difference, site load profile and system scale. In most Southeast Asia markets, the payback period ranges from 3-6 years.
Yes. Our C&I ESS can connect with existing PV installations to build solar-storage hybrid systems without replacing your current solar panels.
We provide remote technical guidance, an operation manual, spare parts support and local partner-assisted on-site commissioning service for overseas commercial & industrial energy-storage projects.
Looking for quotation for your industrial or commercial energy-storage project?
Please share your site load information, local electricity tariff and functional requirements. Our professional engineering team will reply to your inquiry within 24 working hours.
