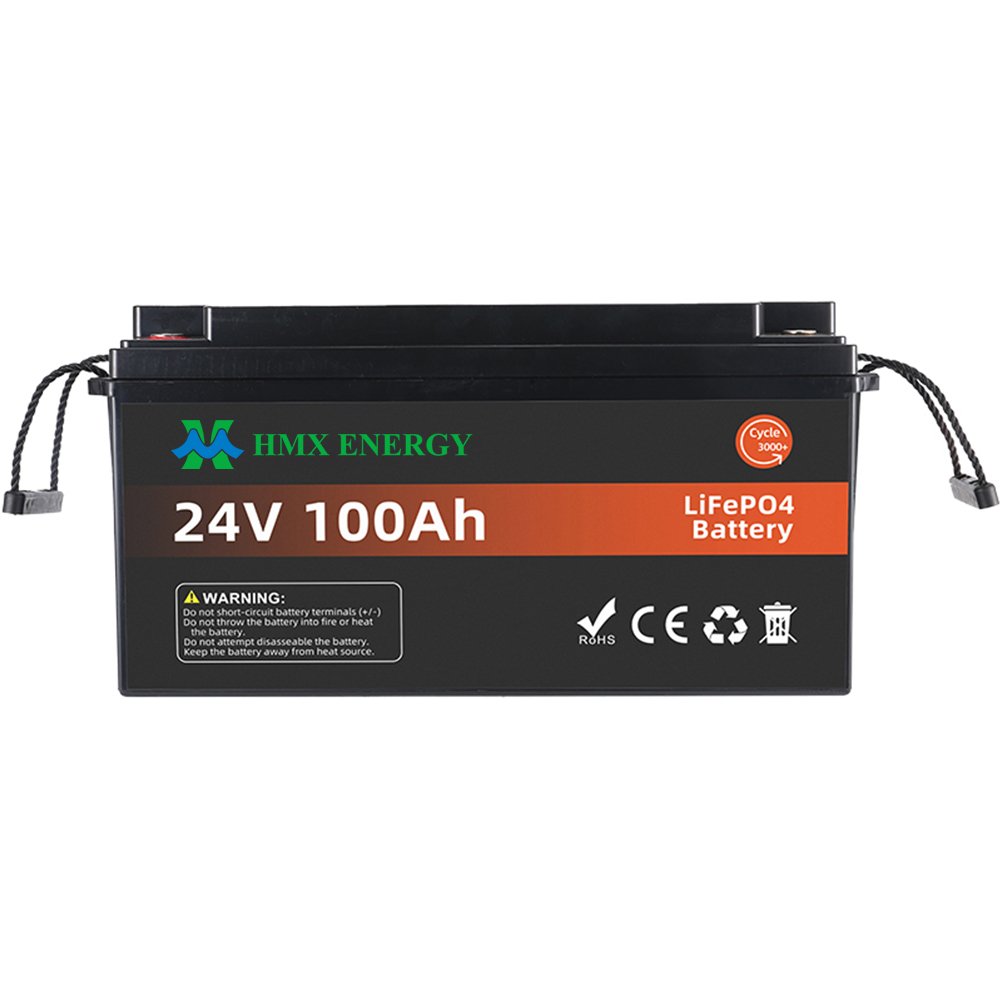

Unleash Long-Lasting Power with Our 24V 100Ah LiFePO4 Battery
Searching for a robust and efficient energy storage solution? HMX 24v 100ah lifepo4 battery is engineered to deliver exceptional performance across a wide range of applications. With a substantial 2560Wh of energy and a lifespan of over 2000 cycles, this 24v lifepo4 100ah unit provides the dependable power you need for your adventures and energy systems.
Whether you’re powering an RV on a cross-country trip, storing solar energy, or running a trolling motor on your boat, this lifepo4 100ah 24v battery offers the perfect blend of capacity and durability.
Key Features & Benefits:
High Capacity & Extended Cycle Life: This battery lifepo4 24v 100ah provides ample power for your devices. With a cycle life of 2000 cycles while retaining 80% of its capacity, this 100ah 24v lifepo4 battery is a long-term investment, saving you money on replacements.
Versatile Application: Widely used in boats, RV camping, golf carts, lawnmowers, and solar energy systems. Its stable 24V output makes it a versatile power source for both recreational and practical applications.
Robust Performance: Capable of a max continuous discharge current of 100A and a pulse current of 200A (for 3 seconds), it can handle high-power demands with ease. The low self-discharge rate (≤3.5% per month) ensures it holds its charge when stored.
Built to Endure: Housed in a sturdy plastic casing with an IP55 rating, this battery is protected against dust and water jets, making it suitable for use in demanding outdoor and marine environments.
Safe & Stable Operation: The advanced LiFePO4 chemistry ensures excellent safety and thermal stability. It operates reliably in a wide discharge temperature range from -20℃ to 60℃ (-4℉ to 140℉).
Technical Specifications at a Glance:
Nominal Voltage: 25.6V (24V System)
Nominal Capacity: 100Ah
Energy: 2560Wh
Max. Continuous Discharge Current: 100A
Cycle Life: 2000+ Cycles
Protection Rating: IP55
Terminals: M8
Weight: Approx. 20 Kg

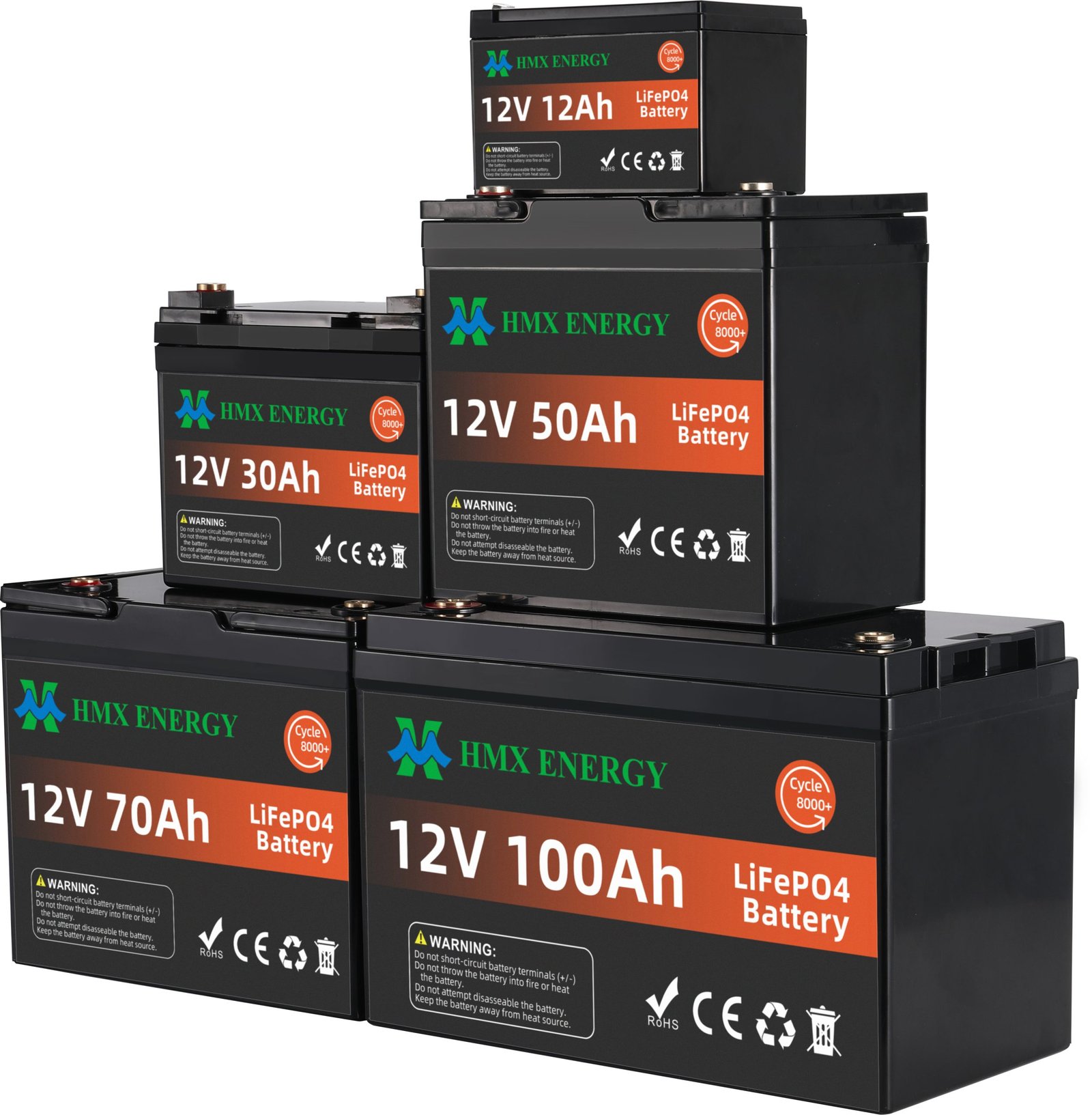

We also provide other 24V LifePo4 Battery, 12V LifePo4 Battery or 100Ah LifePo4 Battery
| Electrical Characteristics | Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah | |
| Energy | 2560Wh | |
| Internal Resistance | ≤35mΩ | |
| Cycle Life | 2000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charging | Max.Charging Voltage | 28.0~29.2V |
| Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C | |
| Charging Current | 50A | |
| Max.Charging Current | 100A | |
| Standard Discharging | Discharging Current | 100A |
| Max. Continuous Current | 100A | |
| Max.Pulse Current | 200A(<3S） | |
| Discharging Cut-off Voltage | 10.0 | |
| Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP55 | |
| Structure | Cell & Format | (8S1P) |
| Casing | Plastic | |

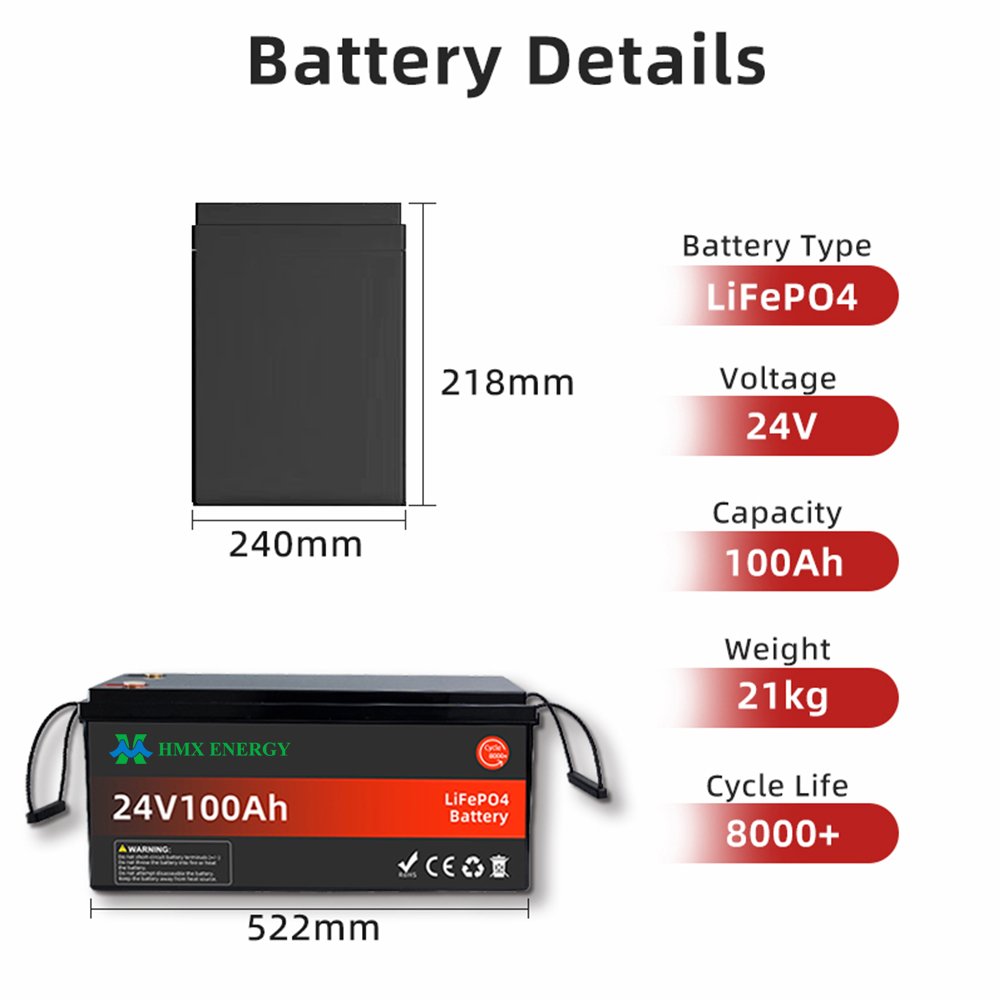

| Dimension(L*W*H*TH) | 522*238*218*218mm | |
| Package Dimension | 570*310*297mm | |
| Weight | Approx. 20Kg | |
| Terminal | M8 |
Ideal for Your Power Needs:
From providing off-grid electricity as part of a solar setup to ensuring you have all the comforts of home in your RV, this 24v 100ah lifepo4 battery is the reliable heart of your system. Upgrade to a cleaner, more efficient, and longer-lasting power solution today.
