51.2v 5kWh wall-mounted lithium battery

51.2V 100ah Wall-mounted Lithium Iron Phosphate Battery 5kWh Home Energy Storage Battery

  • Compact & Certified Wall-Mounted LiFePO₄ Battery for Smart Home Energy Storage

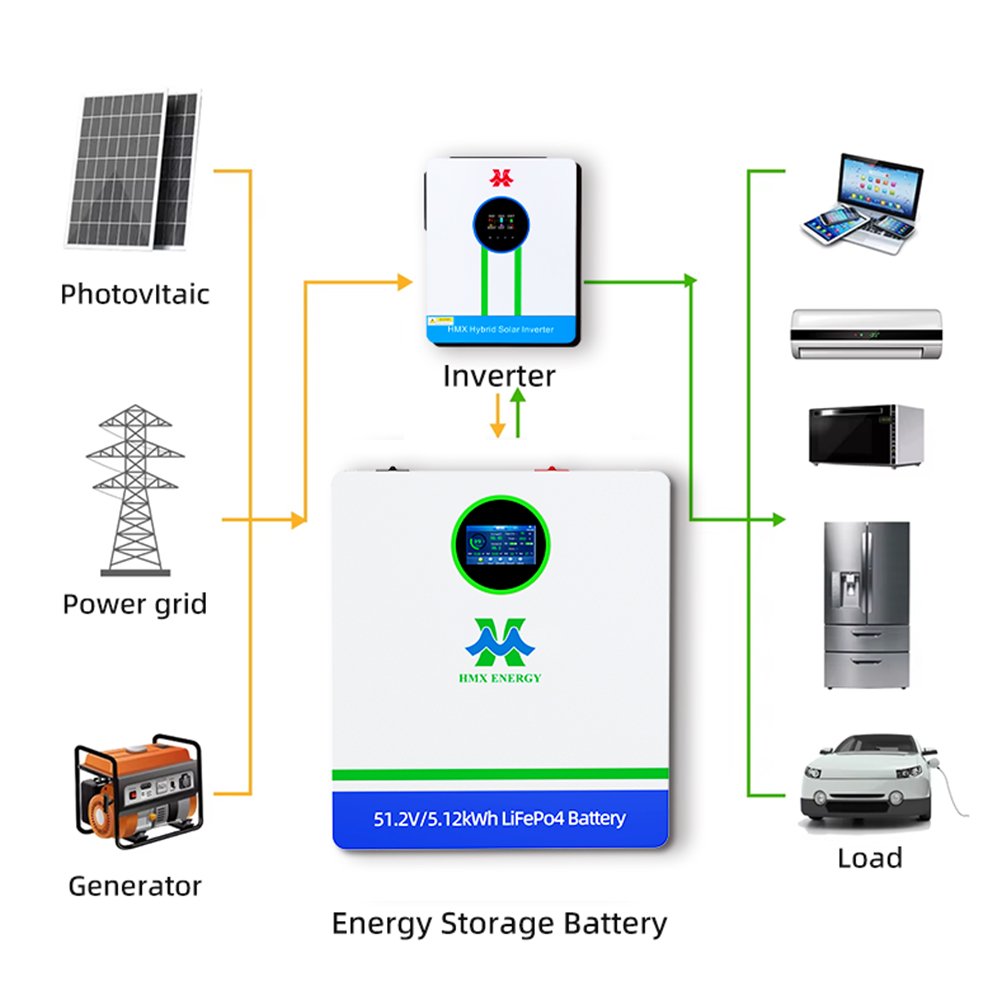

  • The HMX Power Wallbattery for home energy storage, detects outages, and automatically powers your home during grid failures. It provides backup energy for your home and electric vehicle, recharging with sunlight to keep appliances running for days. Pair it with solar to reduce grid reliance, save money, and lower your carbon footprint.
Get A Quote

Description

51.2v 5kWh wall mounted lithium battery 4 51.2v 5kWh wall mounted lithium battery 5 51.2v 5kWh wall mounted lithium battery 6

Main Parameters
ModelH096 – 5KWh
Basic parameter
Size（LW H）L460mmW145mmH515mm
Weight52 kg
Installation waywall – mounted
working temperature range-10℃~+50℃
Standby power< 10 W
type of coolingnatural cooling
protection class (according to IEC 60529)IP20
climate type (according to IEC 60721 – 4 – 4)Below 4000M above sea level
Operating humidity range5~95%
Display and communication
User interaction interfaceLCD
Method of communicationRS485/CAN
ModularItemParameter
BatteryBattery SpecificationsModel : IFP48173115 – 100Ah
Battery TypeLiFePO4
Nominal Capacity100.0Ah (Typical)
Impedance≤0.45mΩ
Battery Matching MethodIP16S
Battery systemNominal Capacity100.0Ah (Typical)
Nominal Voltage51.2V
Charge Cutoff Voltage58.4V
Charge Current50.0A Standard
Discharge Cutoff Voltage40.0V
Cycle Life≥1200 times
Discharge CurrentStandard: 50.0A
