Description
The HMX-BESS-10002000 is a high-performance large battery storage containers designed for industrial, commercial, and utility-scale applications. With a rated power of 2×500kW and total capacity of 2010kWh, this advanced solution integrates cutting-edge inverter and battery technologies to deliver superior efficiency, safety, and reliability.
Engineered as a modular energy storage container, it offers scalability for projects of different sizes while maintaining flexibility in configuration. Whether for grid stabilization, renewable energy integration, or industrial energy management, this system provides a dependable power backbone for modern energy needs.
Technical Specifications
| Model | HMX-BESS-10002000 | |
| SYSTEM NOMINAL | ||
| Rated power | 500*2KW | |
| Rated capacity | 2010KWh | |
| AC INPUT/ OUTPUT | ||
| Rated voltage | 400V | |
| Voltage range | 320～460V | |
| Rated current | 722*2A | |
| Rated frequency | 50/60Hz | |
| Power factor | > 0.975 | |
| DC INPUT/ OUTPUT | ||
| Rated voltage | 598.4V | |
| Min. voltage | 467.5 V | |
| Max. voltage | 682.5V | |
| Rated current | 840*2A | |
| Cell capacity | 3360Ah | |
| Cell numbers | 2244pcs | |
| Total capacity | 2010KWh | |
| BATTERY MANAGEMENT | ||
| Battery cluster | 12pcs | |
| Battery module | 132pcs | |
| Voltage accuracy | 0.20% | |
| Temperature accuracy | 1% | |
| SOC accuracy | 5% | |
| Capacity accuracy | 1% | |
| AIR CONDITIONER | ||
| Installation method | Installed inside | |
| Air cooling power | 10kW | |
| FIRE PROTECTION SYSTEM | ||
| Fire extinguishing media | Heptafluoropropane | |
| Spraying method | Pipeline type | |
| CYCLE LIFE | ||
| >6000 cycles(25℃,0.5C) | ||
| AVAILABILITY RATE | ||
| >90% | ||
| PHYSICAL | ||
| Weight | <25t | |

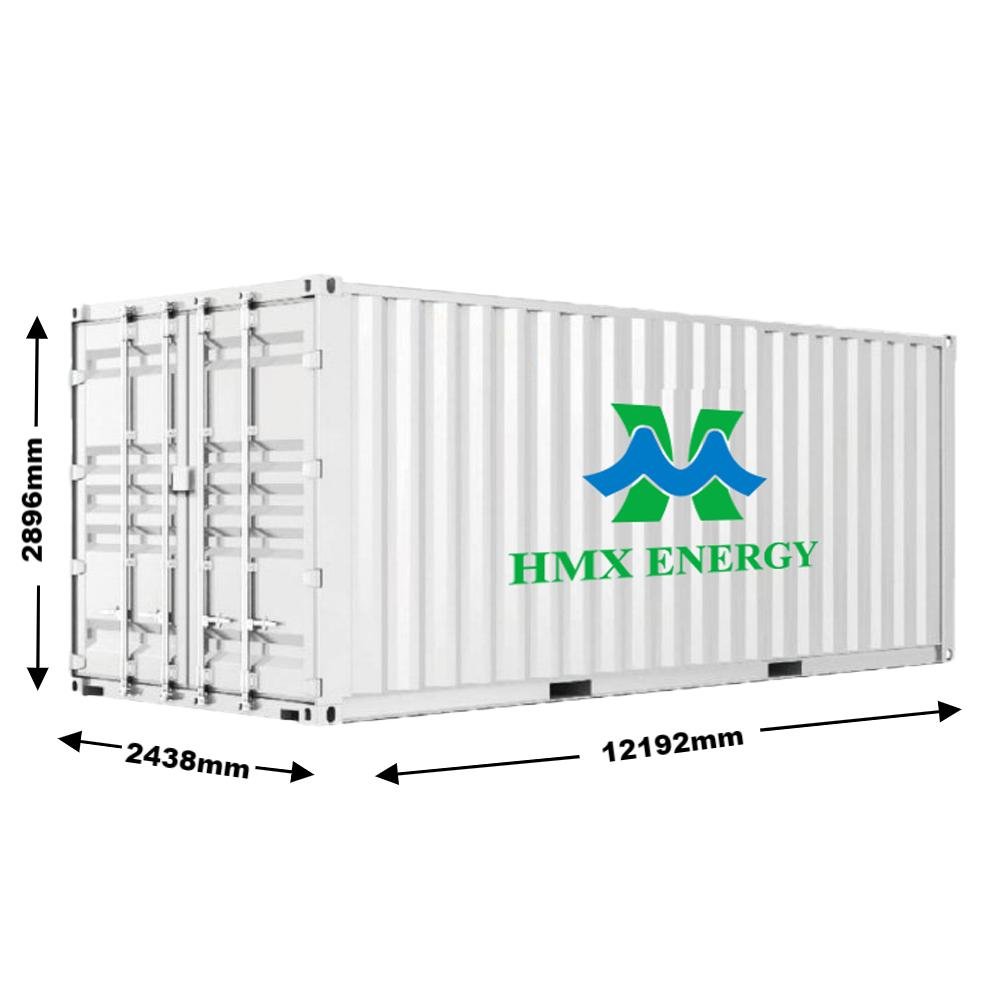

| L*W*H | 12192*2438*2896(mm) | |
We also provide 250KW 500KWH Battery Storage Container.
Key Features & Benefits
Highly Integrated & Easy Deployment

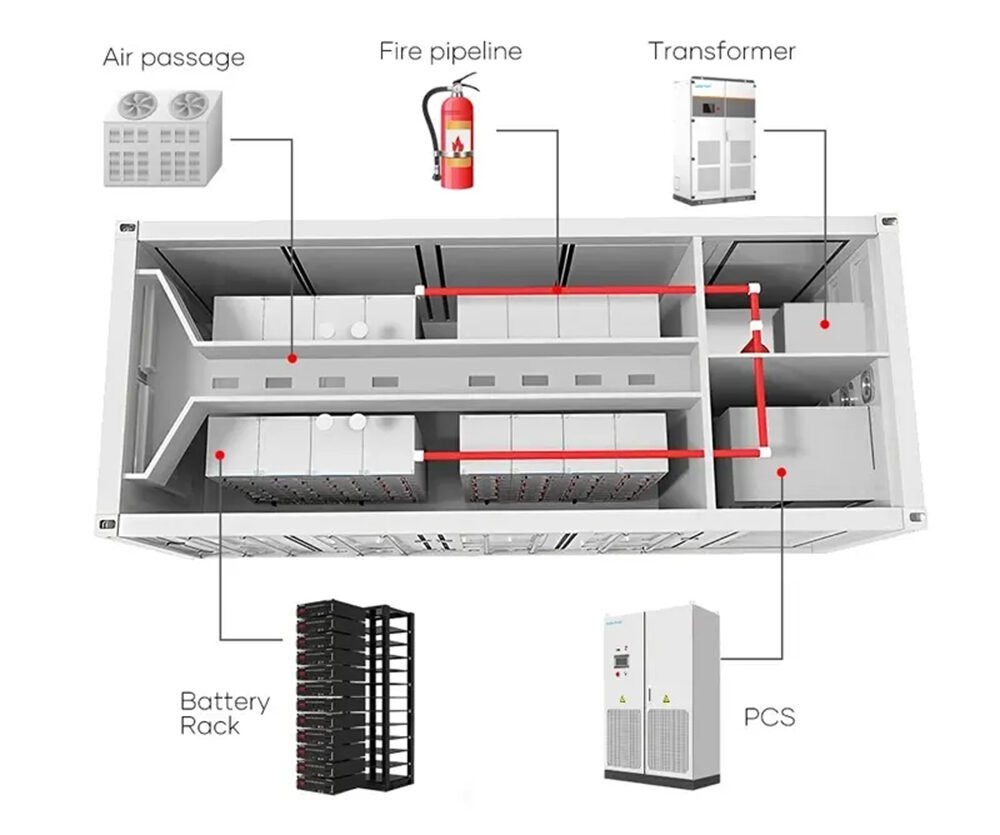

The battery storage container is fully pre-assembled, allowing easy transportation, quick installation, and straightforward maintenance. Real-time monitoring and intelligent fault logging ensure reliable operation.
Intelligent Modularity & Expandability
Built with advanced CTP (Cell-to-Pack) technology, this battery container storage solution supports parallel connection, making expansion simple and cost-effective as your power needs grow.
Advanced Safety & Reliability
Equipped with a multi-level battery protection system and an automatic fire suppression system using HFC-227ea, the storage container for batteries provides industry-leading safety standards for critical operations.
Flexible Cooling Options
The system offers both air cooling (10kW internal air conditioner) and optional liquid cooling to adapt to different climatic conditions and performance requirements.
Long Life & Durability
With a cycle life exceeding 6000 cycles (25°C, 0.5C) and a design life of over 15 years, the energy storage container guarantees long-term performance with minimal degradation.
Wide Application Scenarios
Renewable energy integration
Grid peak shaving & load balancing
Industrial parks & commercial facilities
Remote or off-grid regions
Data centers & telecom stations
Why Choose HMX Energy?
Our battery storage containers are designed with durability, scalability, and safety in mind. From energy storage containers for utility grids to compact storage containers for batteries in industrial applications, we deliver solutions that optimize energy usage, reduce costs, and ensure sustainable power management.
