Description

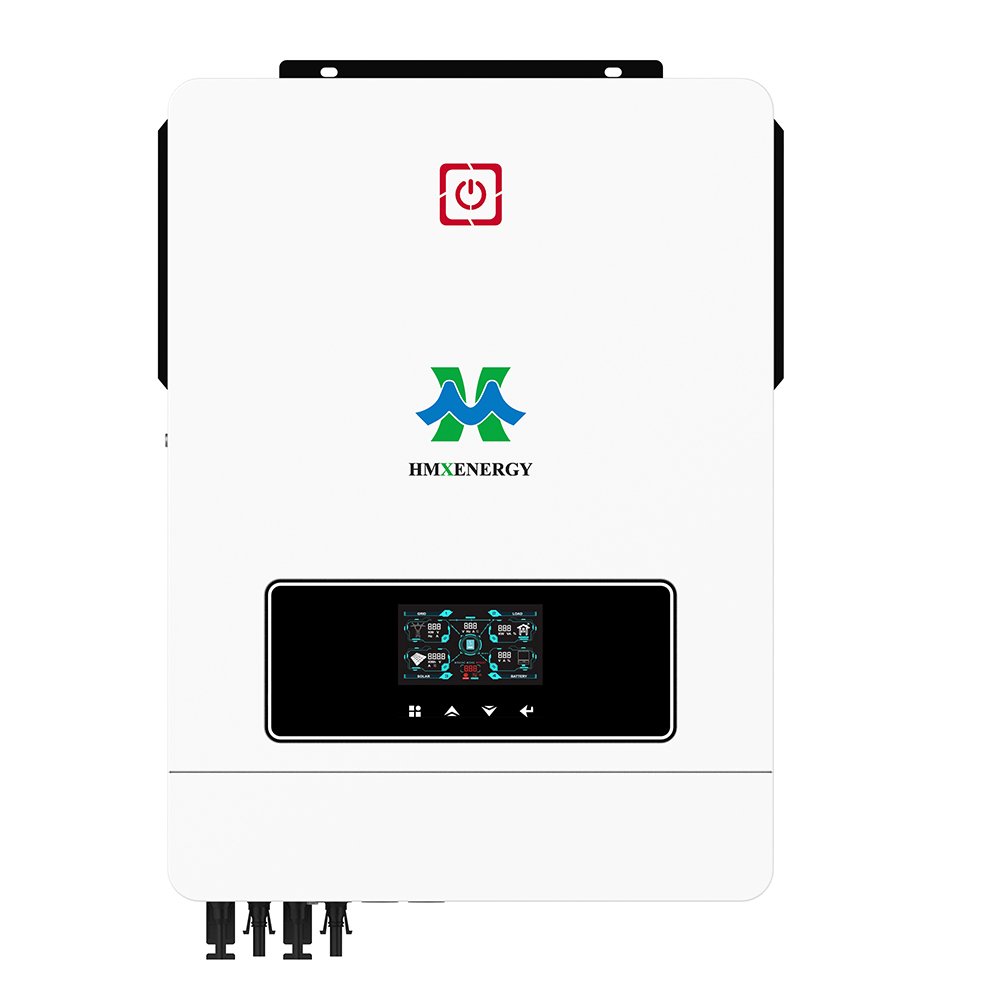

48v10.2kw inverter
| MODEL | HMX-10.2KW |
| Phase | 1-phase |
| Maximum PV Input Power | 5400W+5400W |
| Rated Output Power | 10200W/10200VA |
| Maximum Solar Charging Current | 160A |
| GRID-TIE OPERATION | |
| PV INPUT(DC) | |
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
| MPPT Voltage Range | 90~450VDC |
| Maximum Input Current | 2/18A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 195~253VAC |
| Nominal Output Current | 44.3A |
| Power Factor | >0.99 |
| EFFICIENCY | |
| Maximum Conversion Efficiency(DC/AC) | 98% |
| TWO LOAD OUTPUT POWER | |
| Full Load | 10200W |
| Maximum Main Load | 10200W |
| Second Load Range | 2040W~7140W |
| Maximum Load Cut Off Voltage | 52VDC |
| Maximum Load Return Voltage | 54VDC |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
| Acceptable Input Voltage Range | 90~280VAC or 170~280VAC |
| Frequency Range | 50±1Hz/60±1Hz |
| Maximum AC input Current | 48.2A 60A |
| PV INPUT(DC) | |
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC |
| MPPT Voltage Range | 90~450VDC |
| Maximum Input Current | 2/18A |
| BATTERY MODE OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Wave Form | Pure sine wave |
| Efficiency(DC to AC) | 94% |
| BATTERY&CHARGER | |
| Nominal DC Voltage | 48VDC |
| Maximum Solar Charging Current | 160A |
| Maximum AC Charging Current | 140A |
| Maximum Solar+AC Charging Current | 160A |
| HYBRID OPERATION | |
| PV INPUT(DC) | |
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
| MPPT Voltage Range | 90~450VDC |
| Maximum Input Current | 2/18A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 195~253VAC |
| Nominal Output Current | 44.3A |
| AC INPUT | |
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
| Maximum AC Input Current | 60A |
| Maximum Charging Current | 140A |
| GENERAL | |
| PHYSICAL | |

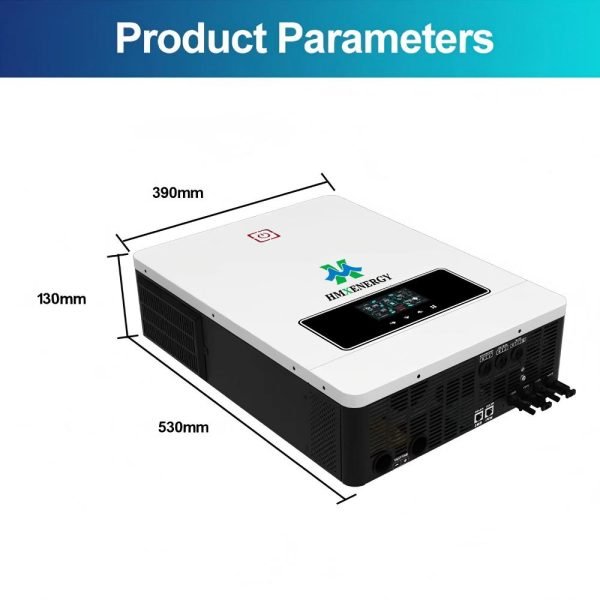

| Dimension,H*W*D(mm) | 500*390*136 |
| Cartoon Dimension,H*W*D(mm) | 588*463*265 |
| Net Weight(kgs) | 14.7 |
| Gross Weight(kgs) | 16.2 |
| INTERFACE | |
| Communication Port | RS232/RS485/WIFI/LITHIUM BATTERY |
| ENVIRONMENT | |
| Humidity | 5%to 95%Relative Humidity(Non-condensing) |
| Operating Temperature | -10℃~50℃ |
| STANDARD | |
| Compliance Safety | CE |
