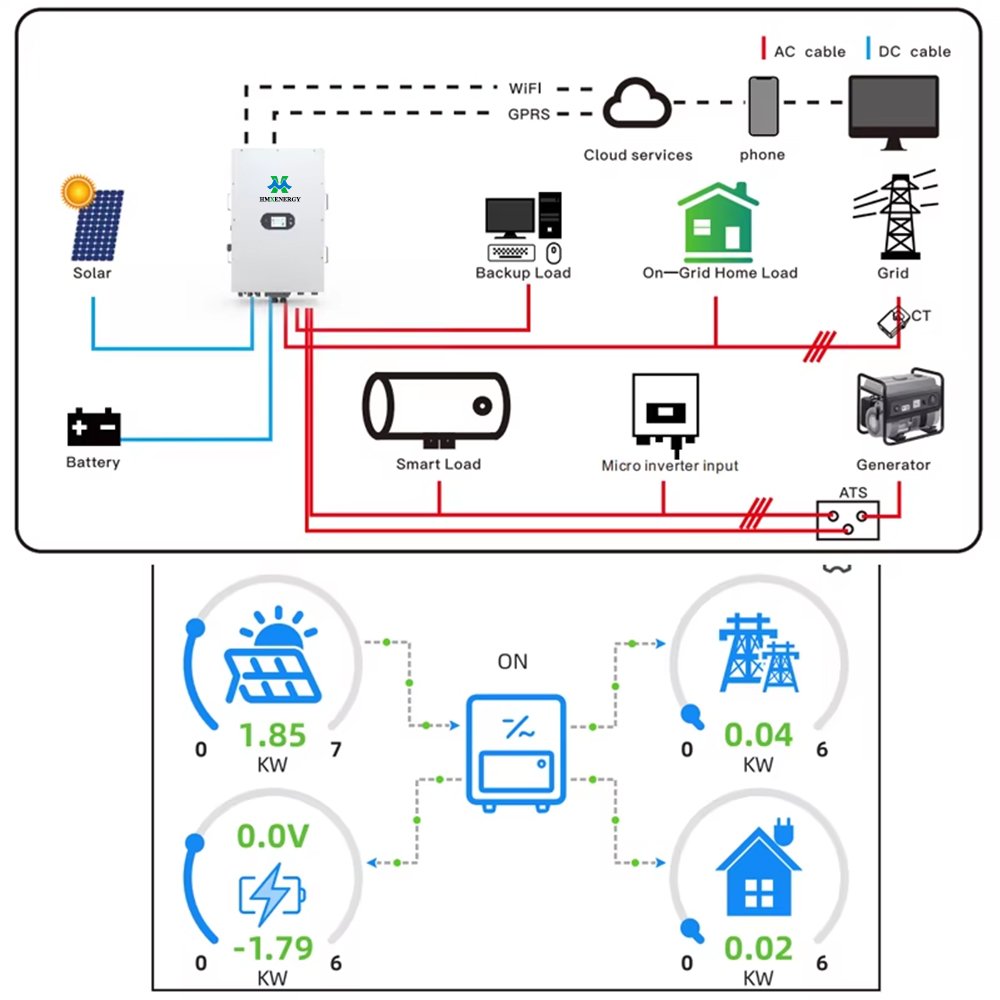

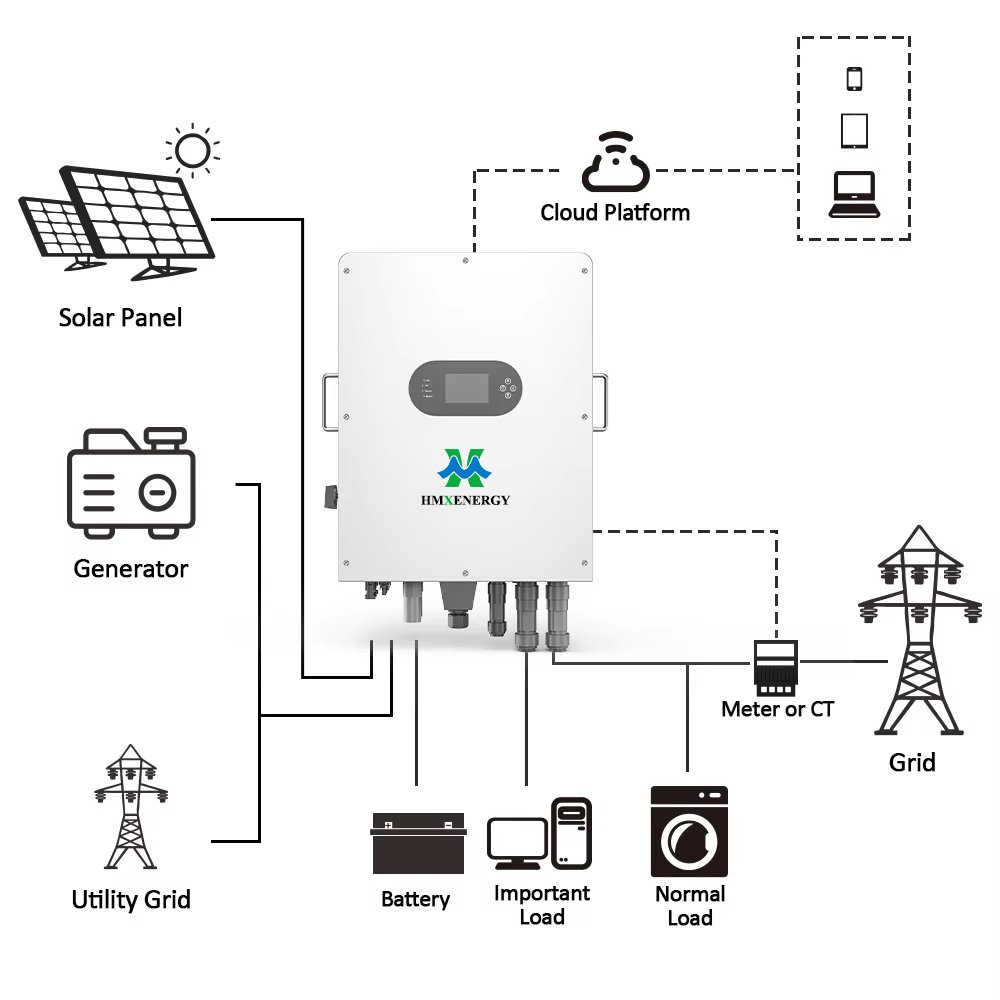

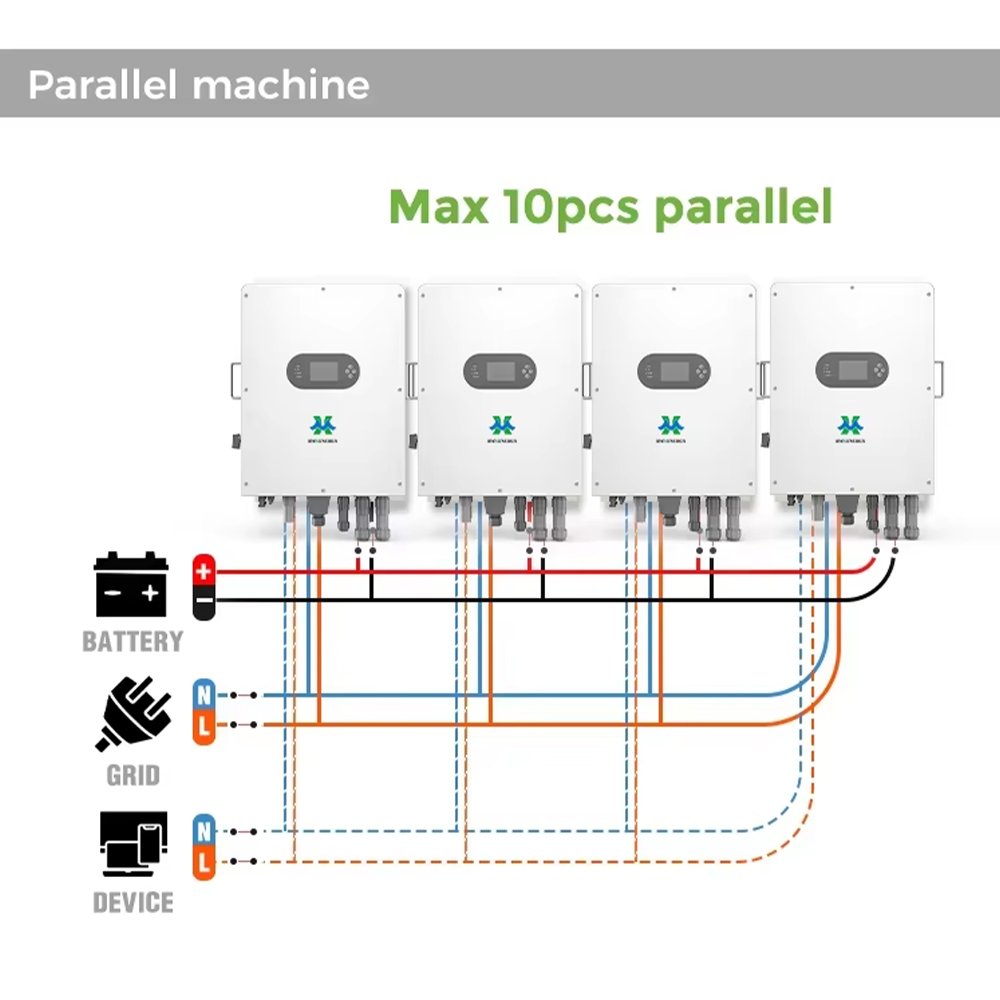

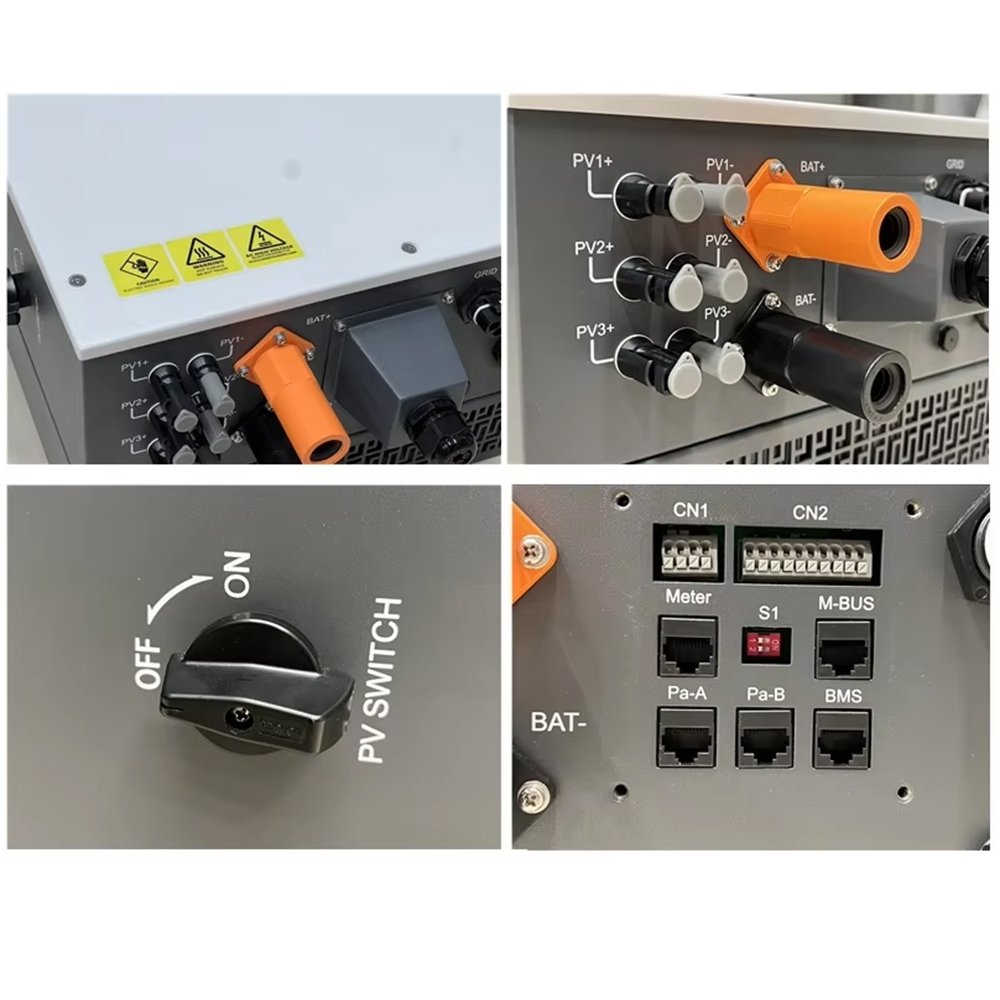

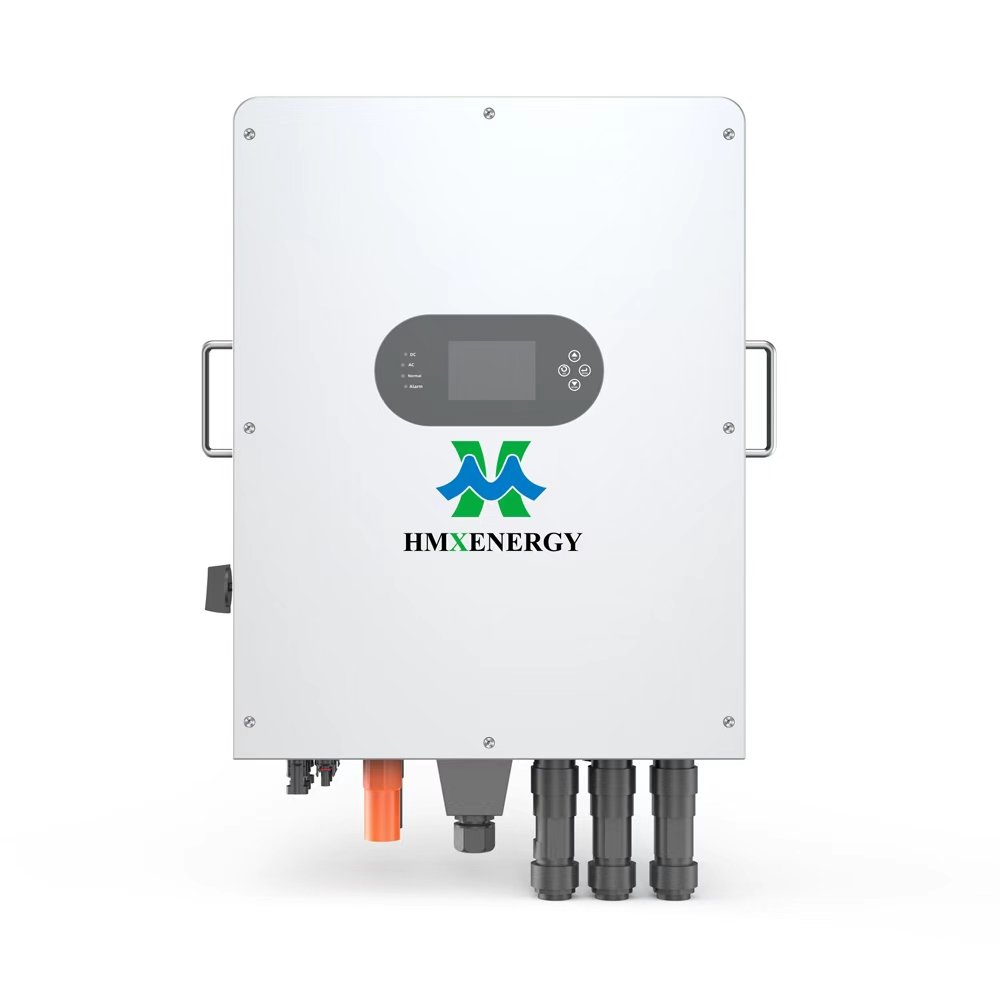

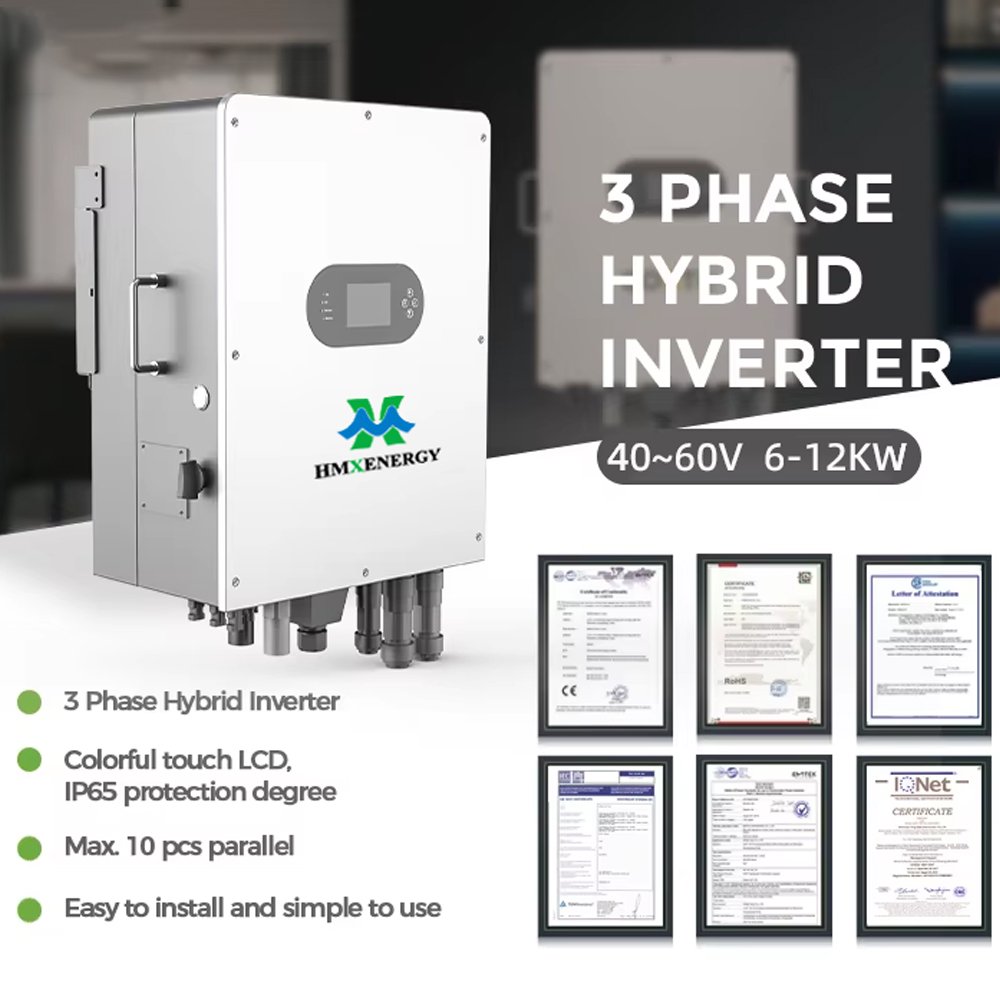

Description
Data Sheet
| Model | HCB01-TPM-602G-EU | HCB01-TPM-802G-EU | HCB01-TPM-103G-EU | HCB01-TPM-123G-EU | HCB01-TPM-153G-EU |
| PV String Input | |||||
| Max. PV Access Power (W) | 12000 | 16000 | 20000 | 24000 | 30000 |
| Max. PV Input Power (W) | 9600 | 12000 | 15000 | 18000 | 24000 |
| Rated PV Input Voltage (V) | 800 | ||||
| Start-up Voltage (V) | 160 | ||||
| MPPT Voltage Range (V) | 200-650 | 160-650 | |||
| Full Load MPPT Voltage Range (V) | 350-650 | 350-650 | |||
| Max. DC Input Current(A) | 20+20 | 36+36 | |||
| Max. DC Short Circuit Current(A) | 30+30 | 54+54 | |||
| No.of MPPT Trackers | 2 | 2 | |||
| No.of Strings per MPPT Tracker | 2+1 | 2+1 | |||
| AC Input/Output Data | |||||
| Rated AC Output Power (W) | 6000 | 8000 | 10000 | 12000 | 15000 |
| Max AC Output Power (W) | 6600 | 8800 | 11000 | 13200 | 16500 |
| AC Rated Input/Output Current(A) | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 | 22.8/21.8 |
| Max.AC Input/Output Current(A) | 10 /9.6 | 13.4/12.8 | 16.7/16 | 20/19.2 | 25/24 |
| Max.Three-phase Unbalanced Output Current(A) | 13.6/13 | 18.2/17.4 | 22.7/21.7 | 27.3/26.1 | / |
| Max Output short circuit current (A) | 75 | / | |||
| Max. Continuous AC Passthrough(A) | 45 | 70 | |||
| Peak Power (off grid) | 2 times of rated power, 10 S | ||||
| Power Factor | 0.8 leading – 0.8 lagging | ||||
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac | ||||
| Grid Type | Three Phase | ||||
| Total Harmonic Distortion (THDi) | <3% | ||||
| DC Current Injection | <0.5% ln | ||||
| Battery | |||||
| Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range (V) | 40-60 | ||||
| Max. Charging Current (A) | 135 | 190 | 210 | 240 | 280 |
| Max. Discharging Current (A) | 135 | 190 | 210 | 240 | 280 |
| External Temperature Sensor | Optional | ||||
| Charging Curve | 3 Stages / Equalization | ||||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||||
| Efficiency | |||||
| Max. Efficiency | 97.6% | ||||
| Euro Efficiency | 97.0% | ||||
| MPPT Efficiency | >99.0% | ||||
| Protection | |||||
| Anti-islanding Protection | Yes | ||||
| PV String Input Reverse Polarity | Yes | ||||
| Insulation Resistor Detection | Yes | ||||
| Residual Current Monitoring Unit | Yes | ||||
| Output Over Current Protection | Yes | ||||
| Output Shorted Protection | Yes | ||||
| Output overvoltage protection | Yes | ||||
| Photovoltaic input lightning | Yes | ||||
| Surge Protection | DC Type III / AC Type III | ||||
| Over Voltage Category | DC Type II/AC Type III | ||||
| Certifications and Standards | |||||
| Grid Regulation | IEC61727/62116,EN50549-1 | ||||
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
| General Data | |||||
| Operating Temperature Range (℃) | -40~+60℃,>45℃ Derating | ||||
| Cooling | Smart Cooling | ||||
| Noise (dB) | ≤50 dB | ||||
| Communication to BMS | RS485; CAN | ||||
| Monitoring mode | Wi-Fi+APP | ||||
| Weight (kg) | 37.5 | ||||
| Size (W x H x D mm) | 446W×576H×255D(Excluding Connectors and Brackets) | ||||
| Protection Degree | IP65 | ||||
| Installation Style | Wall-mounted | ||||
| Warranty | 5 Years (10 Years Optional) | ||||
