HMX Energy C&I energy storage system integrates LiFePO4 battery modules and high-performance bidirectional PCS. We deliver reliable energy storage solutions for manufacturing plants, industrial parks, commercial complexes and data centres. Available in indoor cabinet and outdoor container formats with flexible capacity scaling. Full-project delivery and localised technical support are available for overseas projects.
Store cheap off-peak grid power, discharge during high-price peak hours to cut overall electricity expenditure.
Smooth power spikes, effectively reduce maximum demand charges for factories and industrial facilities.
Adopt lithium iron phosphate battery chemistry with multi-layer protection for long-cycle stable operation.
Real-time system status, remote data check, alarm notification and performance statistics via cloud platform.
Pre-integrated cabinet & container units, shorten site construction and commissioning cycle.
Cover solution design, product supply, technical guidance, commissioning and after-sales support.

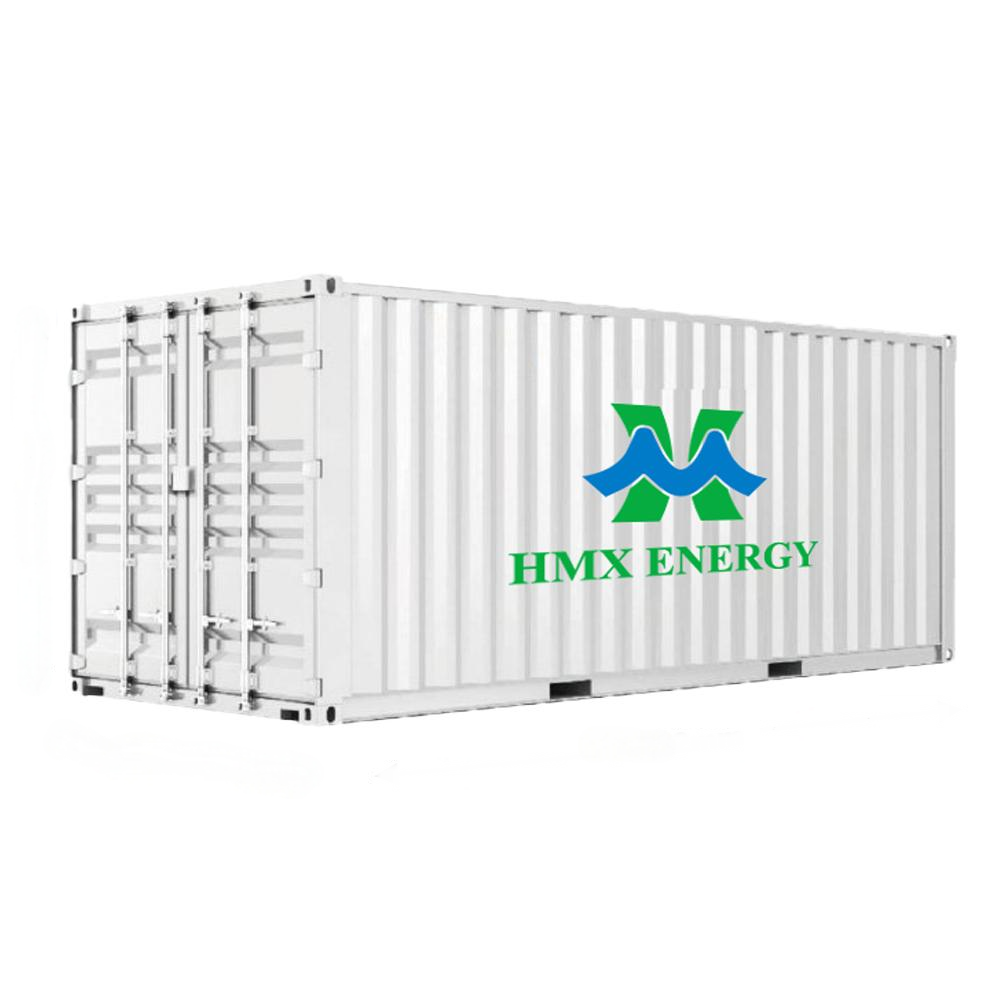

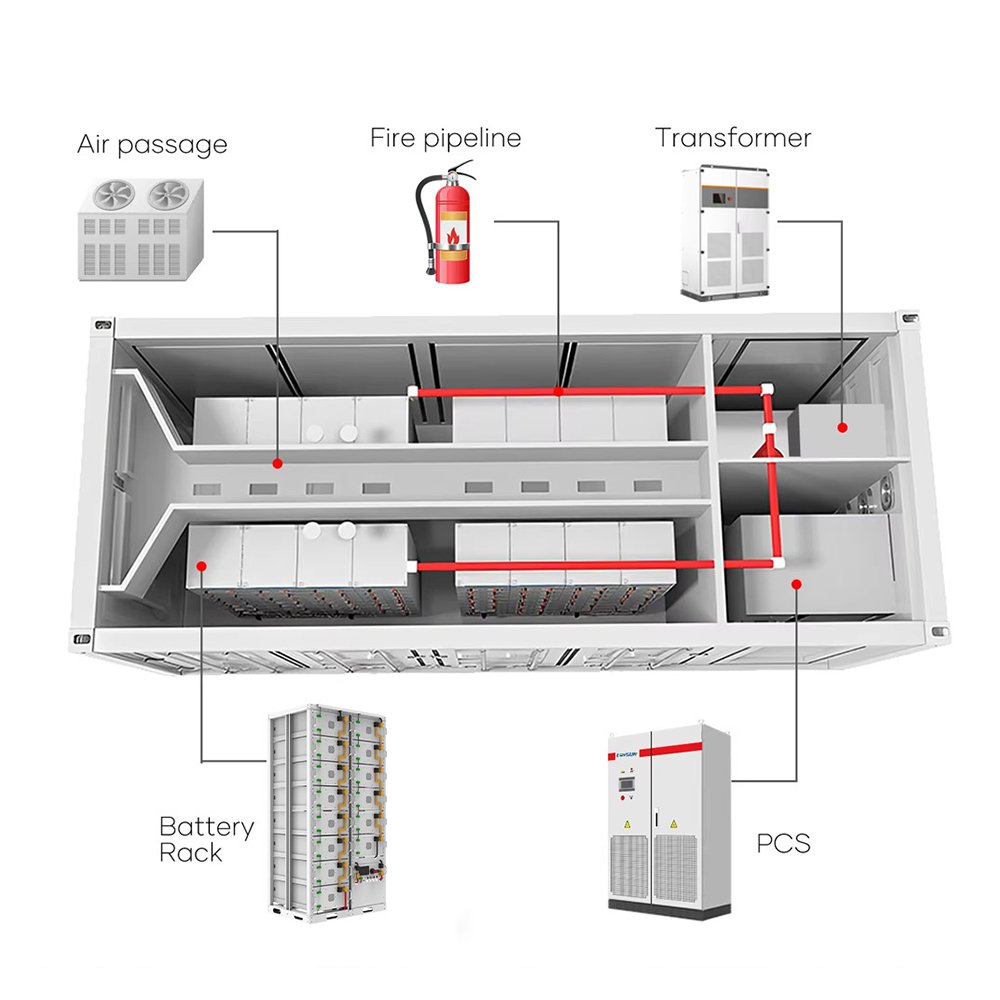

The HMX-BESS-1000/2000 is a 20-foot air-cooled containerised ESS rated at 1MW / 2MWh, with heptafluoropropane pipeline fire protection and an integrated 10kW air conditioning system.
| Item | Specification |
|---|---|
| Model | |
| Model | HMX-BESS-1000/2000 |
| System Nominal | |
| Rated power | 500 kW × 2 |
| Rated capacity | 2010 kWh |
| AC Input / Output | |
| Rated voltage | 400 V |
| Voltage range | 320–460 V |
| DC Input / Output | |
| Rated voltage | 598.4 V |
| Min. voltage | 467.5 V |
| Max. voltage | 682.5 V |
| Battery Management | |
| Battery cluster | 12 pcs |
| Battery module | 132 pcs |
| Air Conditioner | |
| Installation method | Installed inside |
| Air cooling power | 10 kW |
| Fire Protection System | |
| Fire extinguishing media | Heptafluoropropane |
| Spraying method | Pipeline type |
| Cycle Life | |
| Cycle life | >6000 cycles (25°C, 0.5C) |
| Physical | |
| Weight | <25 t |

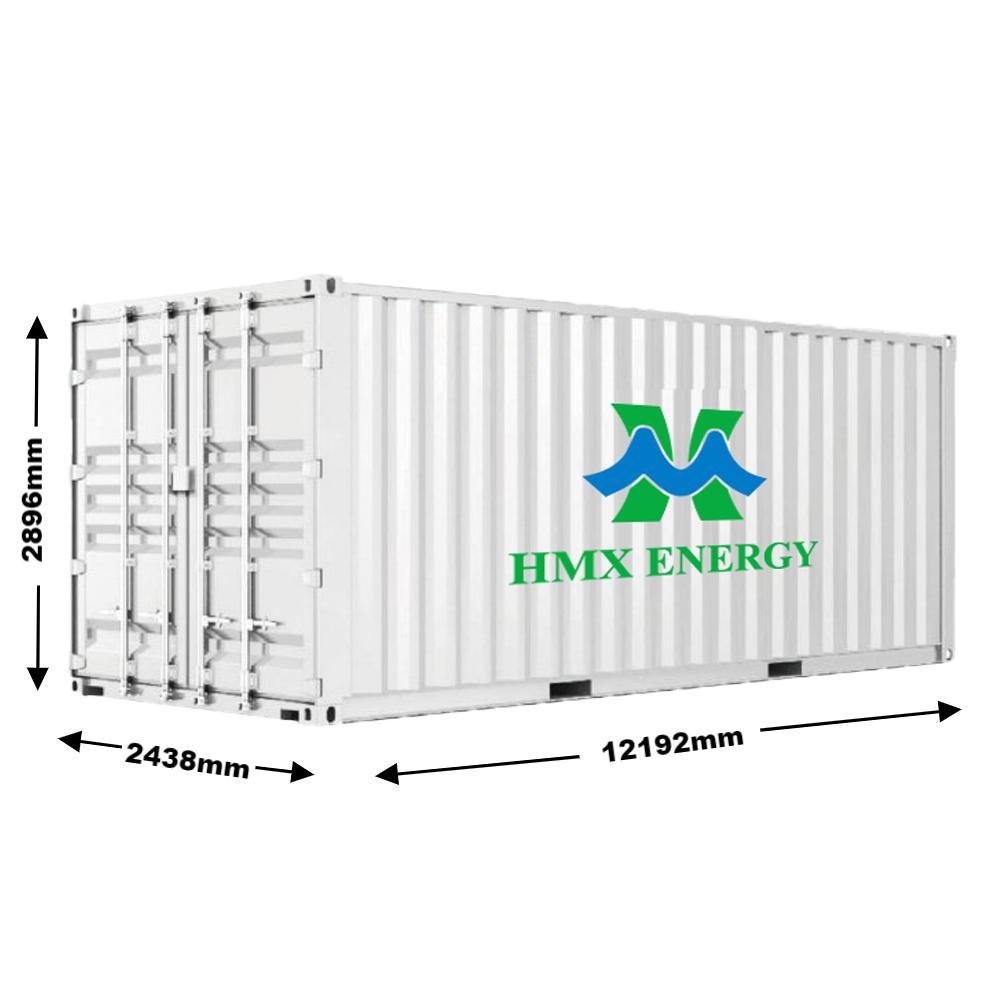

| L × W × H | 12192 × 2438 × 2896 (mm) |

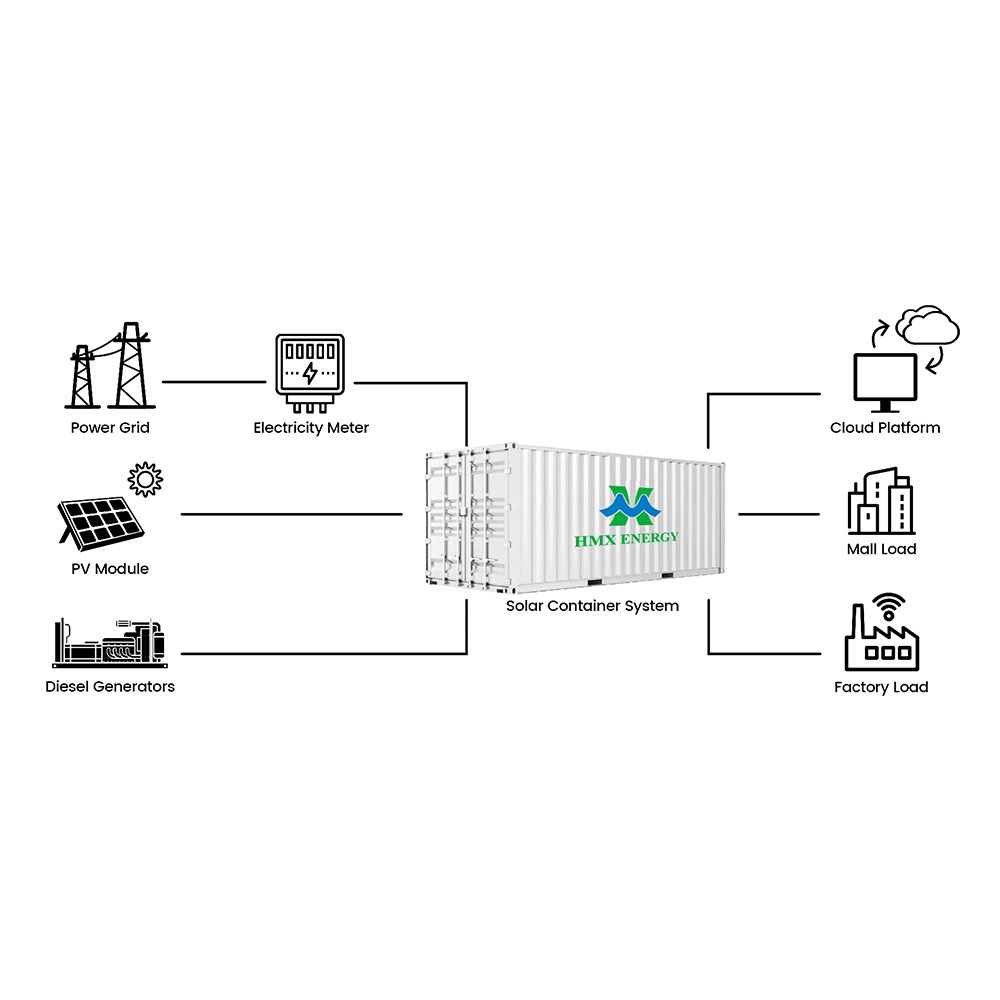

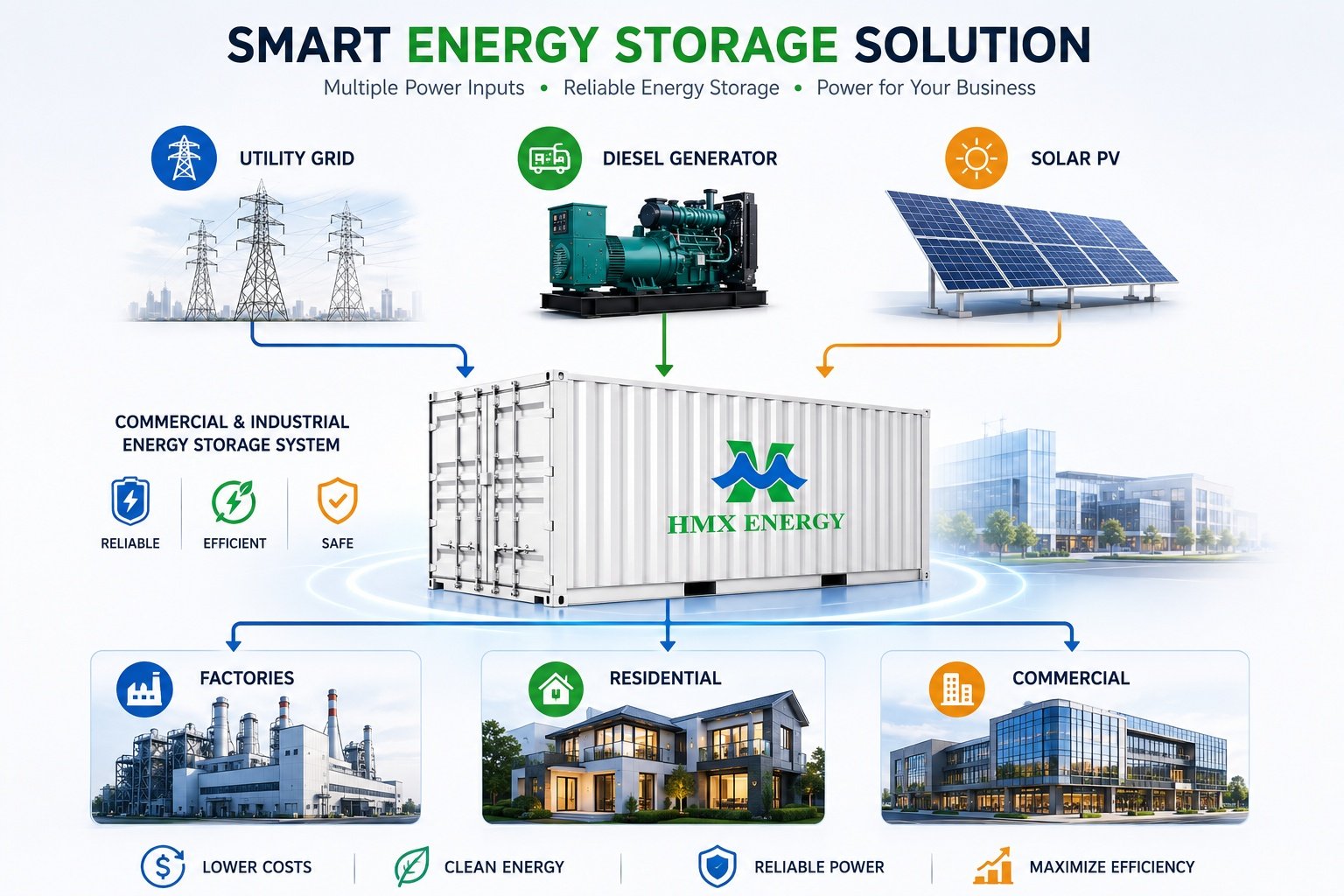

Photovoltaic panels generate DC solar power. The bidirectional PCS completes AC-DC power conversion, and energy is stored in LiFePO4 battery banks.
During high-tariff peak periods or grid failure, the stored energy discharges to supply factory and commercial loads. This delivers peak-valley arbitrage, demand-charge reduction and uninterrupted backup power for your facility.
Reliable UPS-grade backup power for critical IT infrastructure. Instant switchover protects servers and network equipment from outage-related downtime and data loss.
Peak load shaving and emergency backup power for commercial buildings. The system trims maximum demand charges while keeping lighting, HVAC and retail operations running.

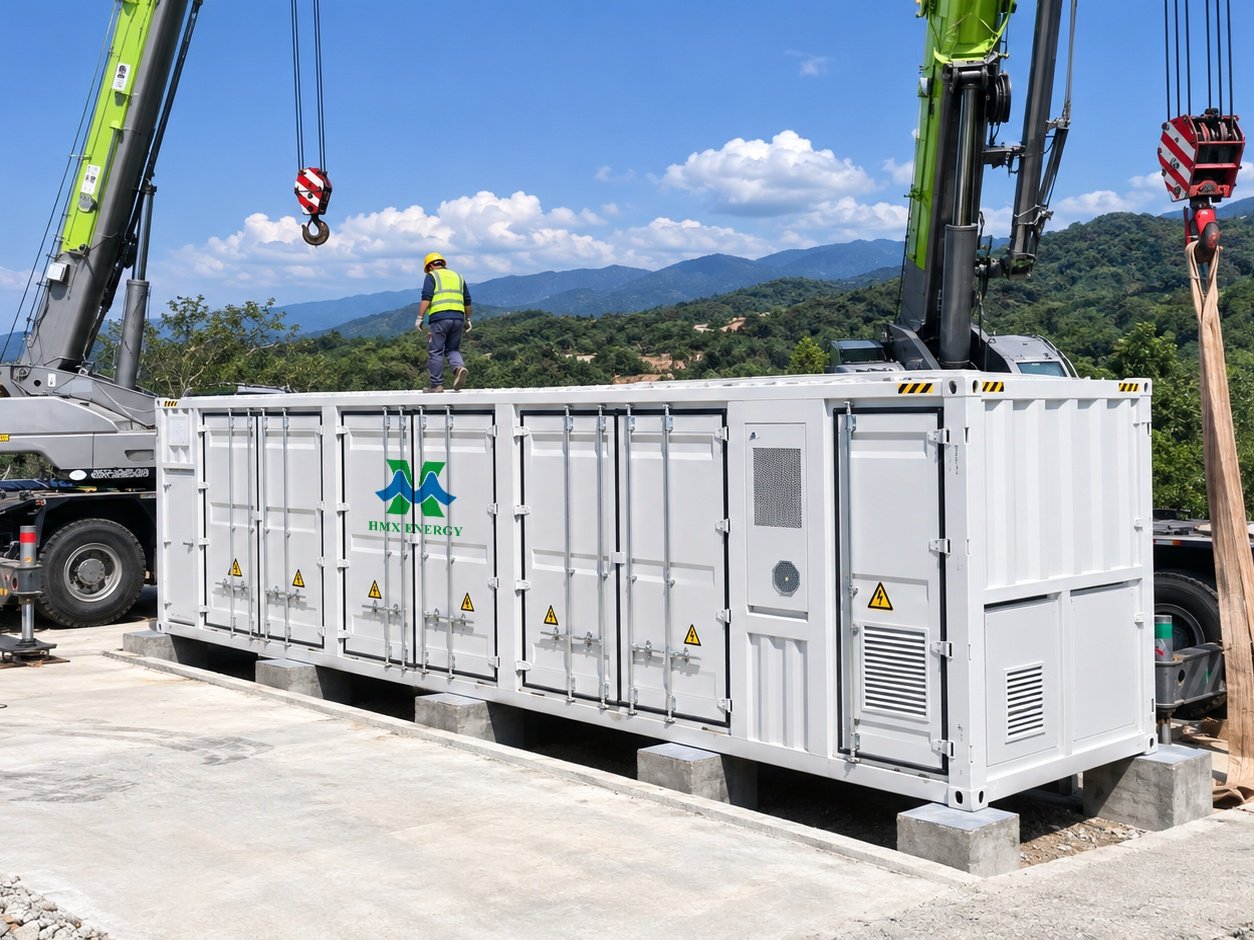

Location: Philippines
System Scale: 4MWh Container C&I Energy Storage
Main Function: Peak-valley arbitrage & backup power

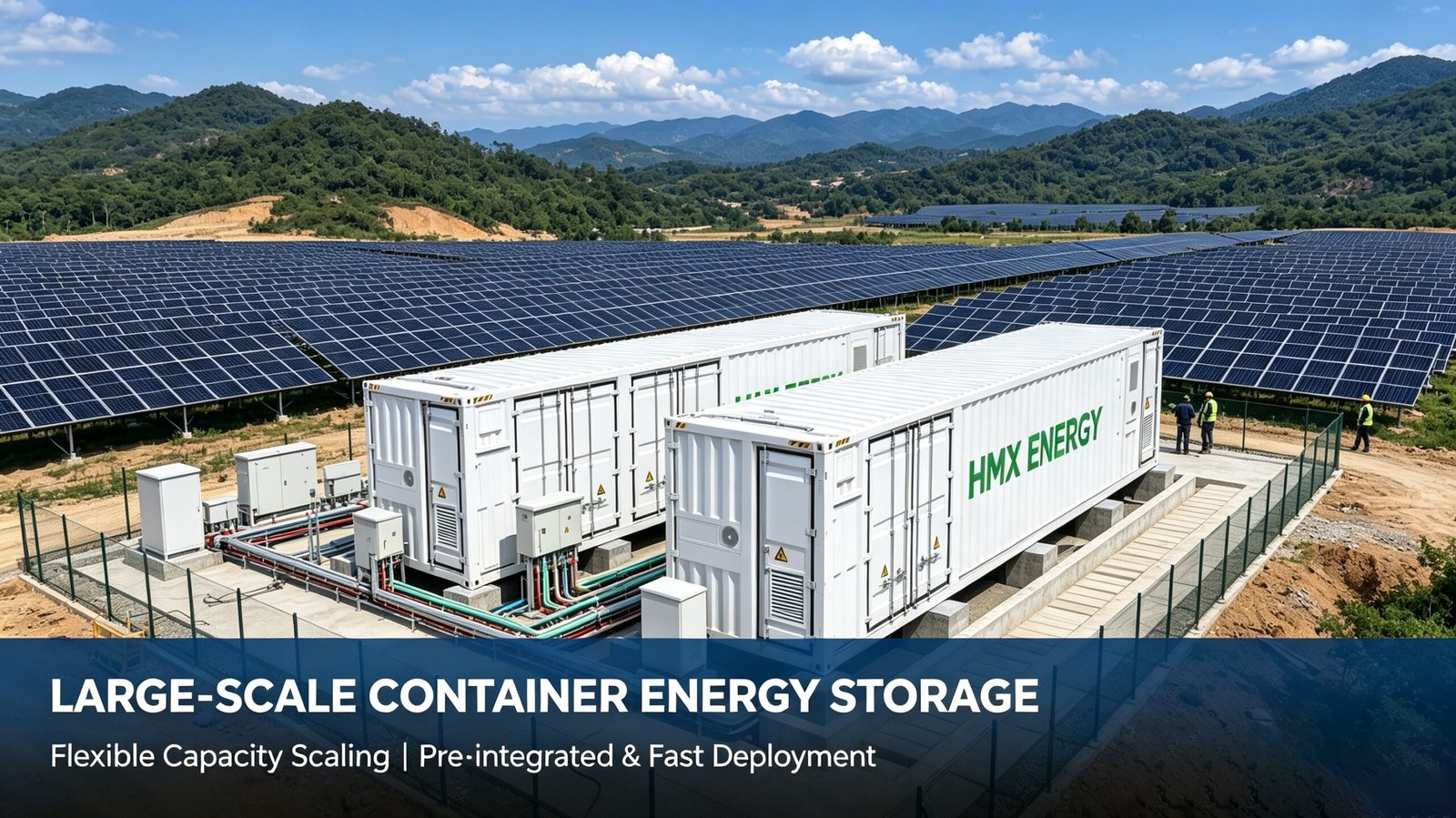

The manufacturing factory adopted our outdoor container ESS to cut demand charges and guarantee power supply during grid blackouts.

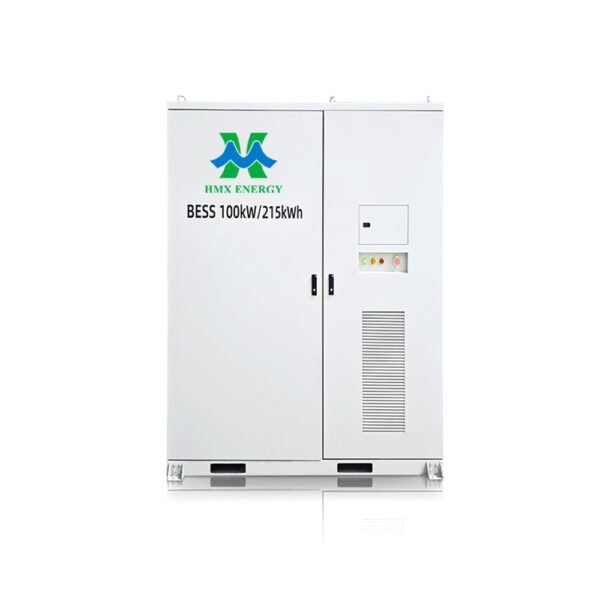

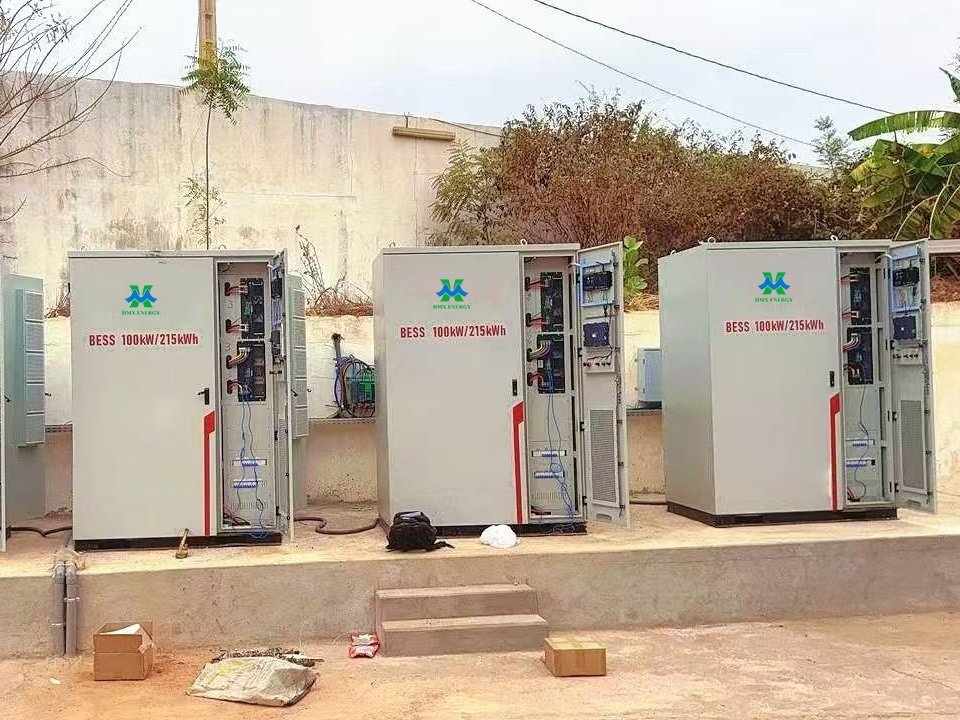

Location: Mali
System Scale: 215kWh Cabinet-Type Energy Storage
Main Function: Aimed at Mali’s pain points of limited grid coverage and frequent power outages (causing food spoilage in malls, life disruption in villas, safety risks at gas stations), we launched a 100kW/215kWh pure off-grid energy storage system, realizing "self-generation for self-use + parallelizable expansion" and 24/7 uninterrupted power supply.

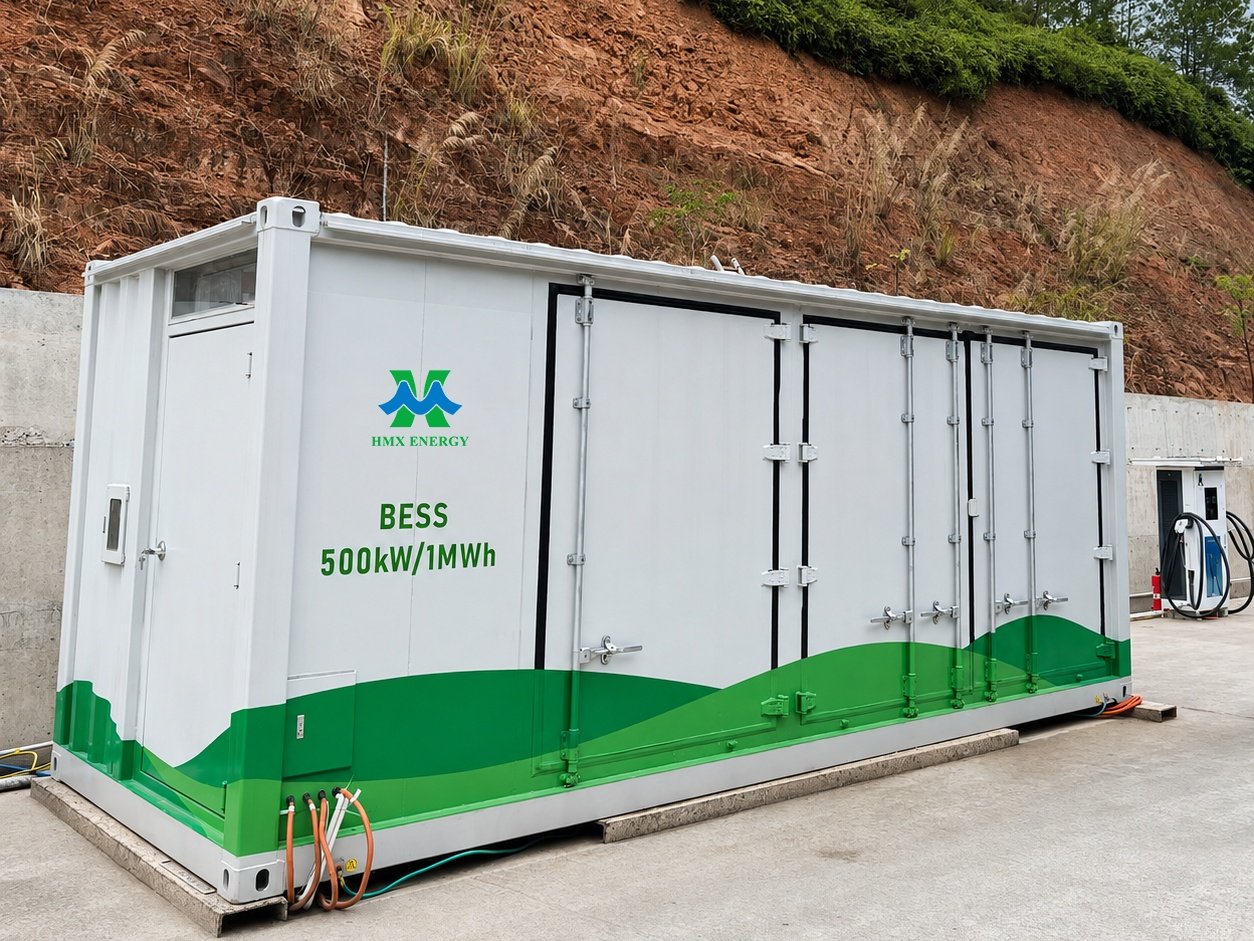

"PV generation → energy storage → nighttime bus charging" closed loop, 100% off-grid
Location: China
System Scale: 625kW PV array + 1MWh energy storage system
Main Function: Responds to "Dual Carbon" strategy & urban green transportation. Energy Attribute: From "grid-dependent power sales" to "100% self-consumption" (solves peak-valley price/grid load issues)
Scenario Adaptation: Matches buses’ "day operation, night charging" via time-shifted energy supply (no municipal power needed)
Benefits: From single economic benefit to "ecology + economy + operation" triple value
Select the proper energy storage capacity according to your site’s actual load condition:

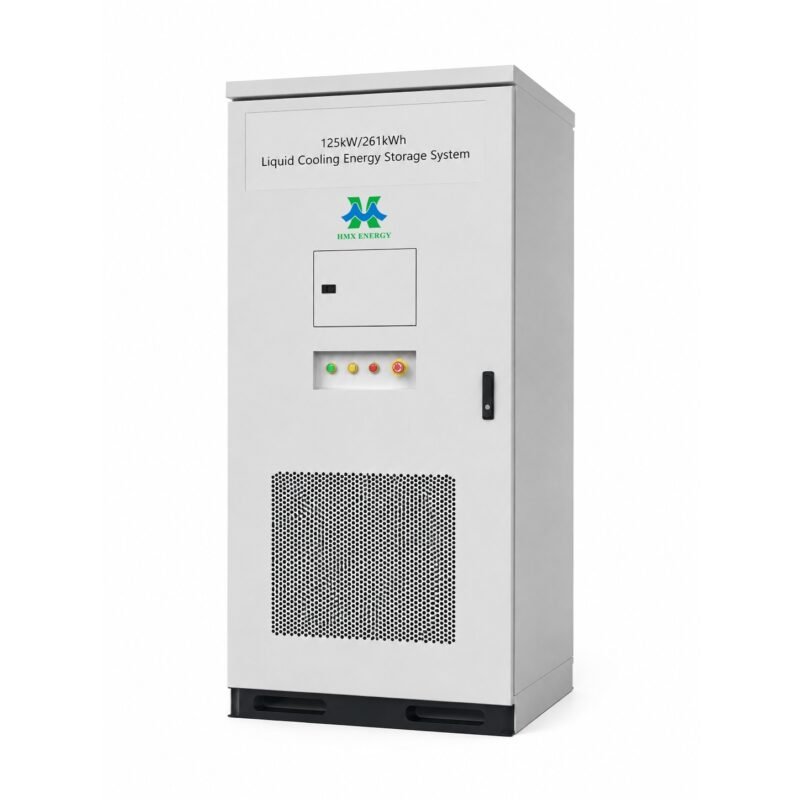

100–300 kWh cabinet-type energy storage
500–1000 kWh container-type energy storage
Above 1 MWh, customised container ESS solution
Contact our engineering team for free site evaluation and a custom-tailored solution.
C&I energy storage helps business users realise peak-valley arbitrage, reduce demand charges, provide emergency backup power and improve the self-consumption rate of on-site solar PV systems. It is widely used for factories, warehouses, commercial buildings and industrial parks.
Required capacity depends on your maximum load, local electricity tariff rules and target functions. Our engineers can offer a capacity suggestion after you provide your site load data.
Payback is mainly affected by the local electricity price difference, site load profile and system scale. In most Southeast Asia markets, the payback period ranges from 3-6 years.
Yes. Our C&I ESS can connect with existing PV installations to build solar-storage hybrid systems without replacing your current solar panels.
We provide remote technical guidance, an operation manual, spare parts support and local partner-assisted on-site commissioning service for overseas commercial & industrial energy-storage projects.
Looking for quotation for your industrial or commercial energy-storage project?
Please share your site load information, local electricity tariff and functional requirements. Our professional engineering team will reply to your inquiry within 24 working hours.
