IP65 Solar Inverter CHMG055-3.0KW-24V

IP65 Outdoor Protection

Suitable for indoor & outdoor installation, adapt to various harsh weather conditions.

MPPT High Efficiency

Wide PV voltage range, maximize solar power utilization.

Strong Overload Capacity

Stable output to handle household surge loads, 3year standard warranty.

Color touch

screen for realtime system monitoring

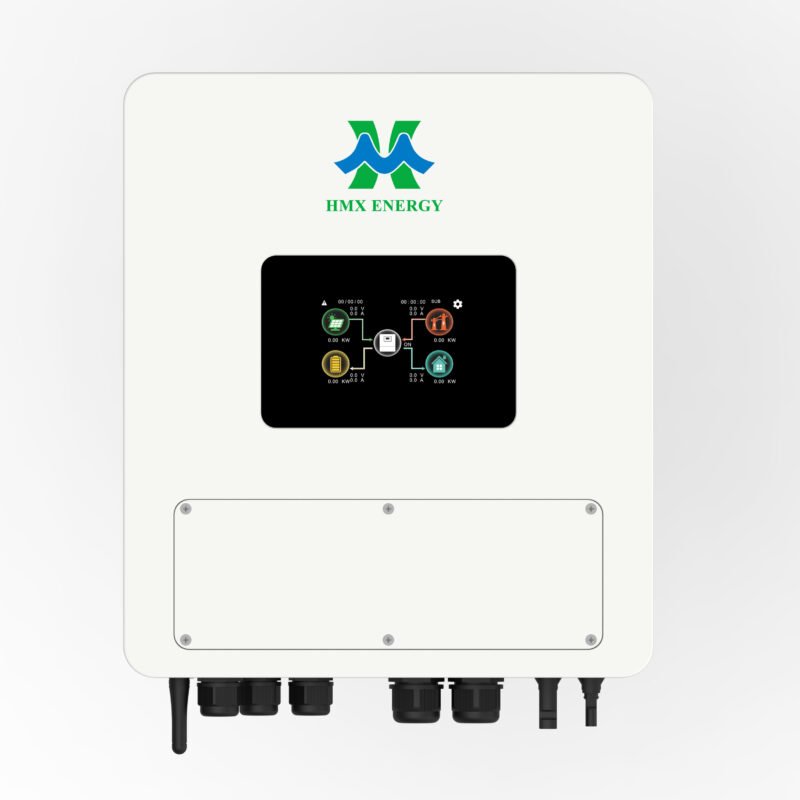

HMX IP65 3KW Hybrid Solar Inverter

Single-Phase ECO Series 3KW-6KW

High-performance hybrid solar inverter for residential solar-storage system. IP65 outdoor rated, dual MPPT, up to 6 units parallel for expandable power solution.

HMX‑ENERGY IP65 hybrid solar inverter 3‑6kW home energy storage system

Key Advantages & Features

IP65 Waterproof & Dustproof

Support indoor & outdoor installation, adapt for harsh outdoor environment for home solar project.

Max 6 Units Parallel Operation (6KW only)

Up to 6 inverters work in parallel, expand total power up to 18kW for larger household demand.

Dual MPPT PV Input

Wide MPPT voltage range 60-450VDC, max PV input power 4500W, high solar energy utilization.

Ultralow Noise & Efficient Cooling

Operating noise below 42dB, quiet running for residential living space, smart fan heat dissipation.

Color Touchscreen Display

Intuitive visual flow chart, real-time monitor PV, battery, grid and home load status.

110% Overload Continuous Output

Strong overload capacity, stable output to handle household surge power loads.

Product Show & Application Diagram

Color touch‑screen display for hybrid solar inverter real‑time energy monitoring

Color Touchscreen Interface

WiFi Remote Monitoring Monitor your system anytime, anywhere

WiFi Remote Monitoring

HMX 3KW SYSTEM real installation scene for home

Residential Installation Scene

Package Accessories List

solar inverter full package accessories mounting bracket cables connectors
  • Hybrid Solar Inverter Main Unit ×1
  • MC4 PV connectors
  • CT current sensor + communication cable
  • RJ45 network cable
  • Wall-mount bracket & expansion bolts
  • User Manual Version 1.0
  • Terminal lugs & mounting hardware

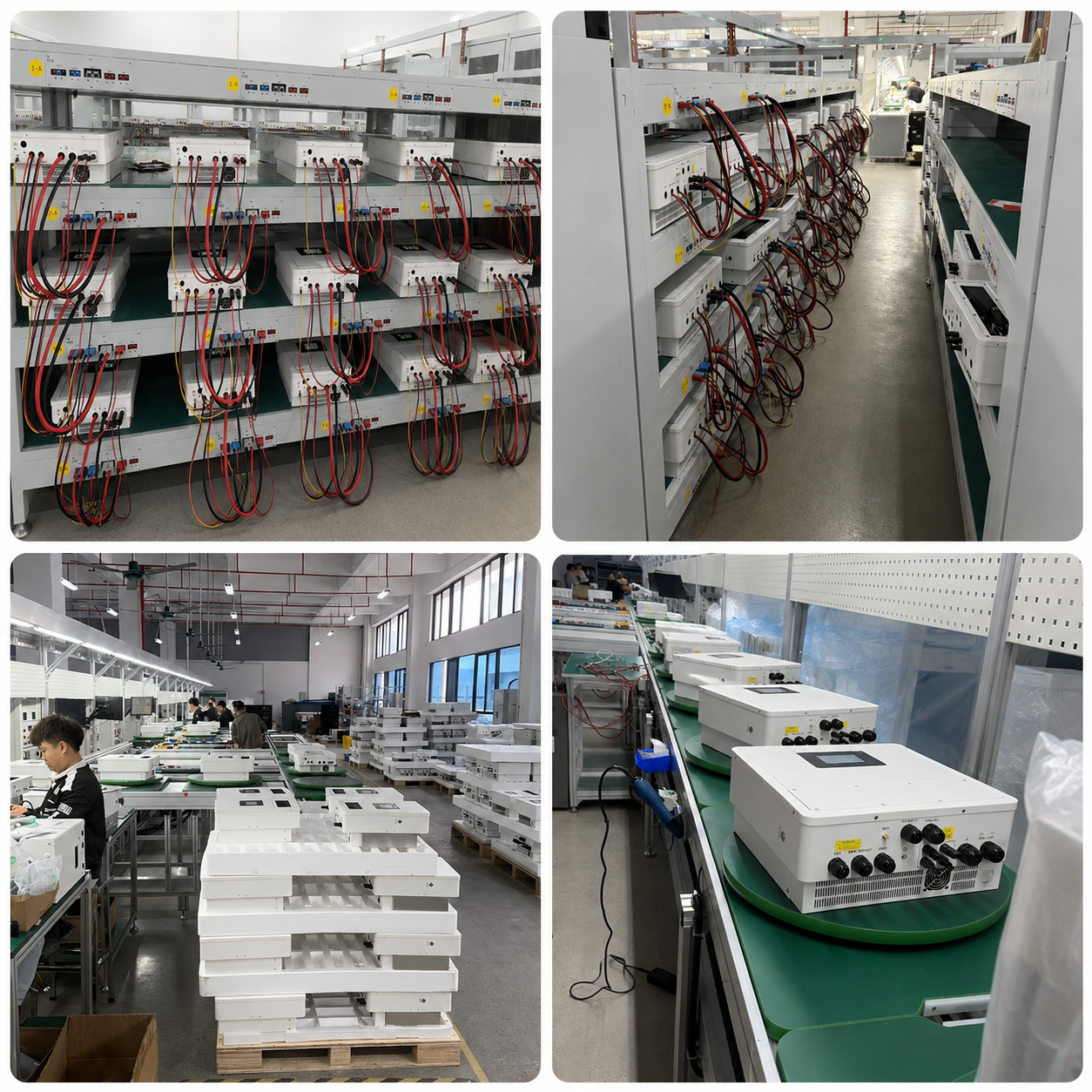

Factory Production & Aging Test

Every unit undergoes strict full-load aging testing before shipment to guarantee stable quality.

HMX‑ENERGY solar inverter production workshop assembly line
HMX‑ENERGY solar inverter production workshop assembly line 3kw 6kw manufacture
Solar inverter full‑load aging test rack quality testing before shipment
HMX‑ENERGY factory production quality aging test for solar inverter

Technical Specifications

ParameterSpecification
ModelMEGA-ECO-3KW
Phase1-phase in / 1-phase out
Maximum PV Input Power4500W
Rated Output Power3000W
Maximum Charging Power3000W
AC Input — AC Start-up Voltage170VAC-280VAC
AC Input — Acceptable Input Voltage Range90-280VAC (APL) or 170-280VAC (UPS)
AC Input — Frequency Range50Hz/60Hz (Auto-sensing)
AC Input — Maximum AC Input Current16A
PV Input (DC) — Maximum DC Voltage500Vdc
PV Input (DC) — MPPT Voltage Range60Vdc-450Vdc
PV Input (DC) — MPPT Trackers / Max Input Current1 / 18A
Battery Mode Output (AC) — Nominal Output Voltage220/230/240VAC
Battery Mode Output (AC) — Output WaveformPure sine wave
Battery Mode Output (AC) — Efficiency (DC to AC)93%
Hybrid Operation — PV Maximum DC Voltage500Vdc
Hybrid Operation — Start-up / Initial Feeding Voltage90Vdc / 120Vdc
Hybrid Operation — MPPT Voltage Range60Vdc-450Vdc
Hybrid Operation — MPPT Trackers / Max Input Current1 / 18A
Grid Output (AC) — Nominal Output Voltage220/230/240VAC
Grid Output (AC) — Output Voltage Range184-264.5 VAC or 195.5-253 VAC or 184-264.4 VAC (Selectable)
Grid Output (AC) — Nominal Output Current13A
Battery & Charger — Nominal DC Voltage24Vdc
Battery & Charger — Maximum Solar Charging Current100A
Battery & Charger — Maximum AC Charging Current100A
Battery & Charger — Maximum Charging Current100A
Physical — Dimension D x W x H (mm)451 × 353 × 160.2
Physical — Net Weight (kg)12.3
Interface — Parallel Function/
Interface — Communication PortRS232 / RS485 / Wi-Fi
Environment — Humidity5% to 95% Relative Humidity (Non-condensing)
Environment — IP DegreeIP65
Environment — Operating Temperature-10℃~50℃
Environment — Storage Temperature-15℃~60℃

Frequently Asked Questions

Yes. It supports grid-tie working mode without battery. When battery is not connected, PV power supplies local loads first, surplus power feeds back to grid.

It is designed for 24V LiFePO4 batteries. Support third-party 24V lithium batteries with compatible BMS communication protocol. Please confirm battery communication protocol before purchase.

Maximum 6 units parallel connection. For the 6kW model in the series, total system power can reach up to 36kW for larger residential and small commercial projects.

WiFi module is included in the standard package.

Standard 3-year factory warranty. Extended warranty options are available for bulk project orders.

Looking for quotation for stable partner of solar inverter manufacturer?

We support OEM & ODM, bulk order for overseas distributors, solar installers and project contractors. Contact us for datasheet and best quotation.
